Display Component Recycling
Maintenance and Service Guide D–9

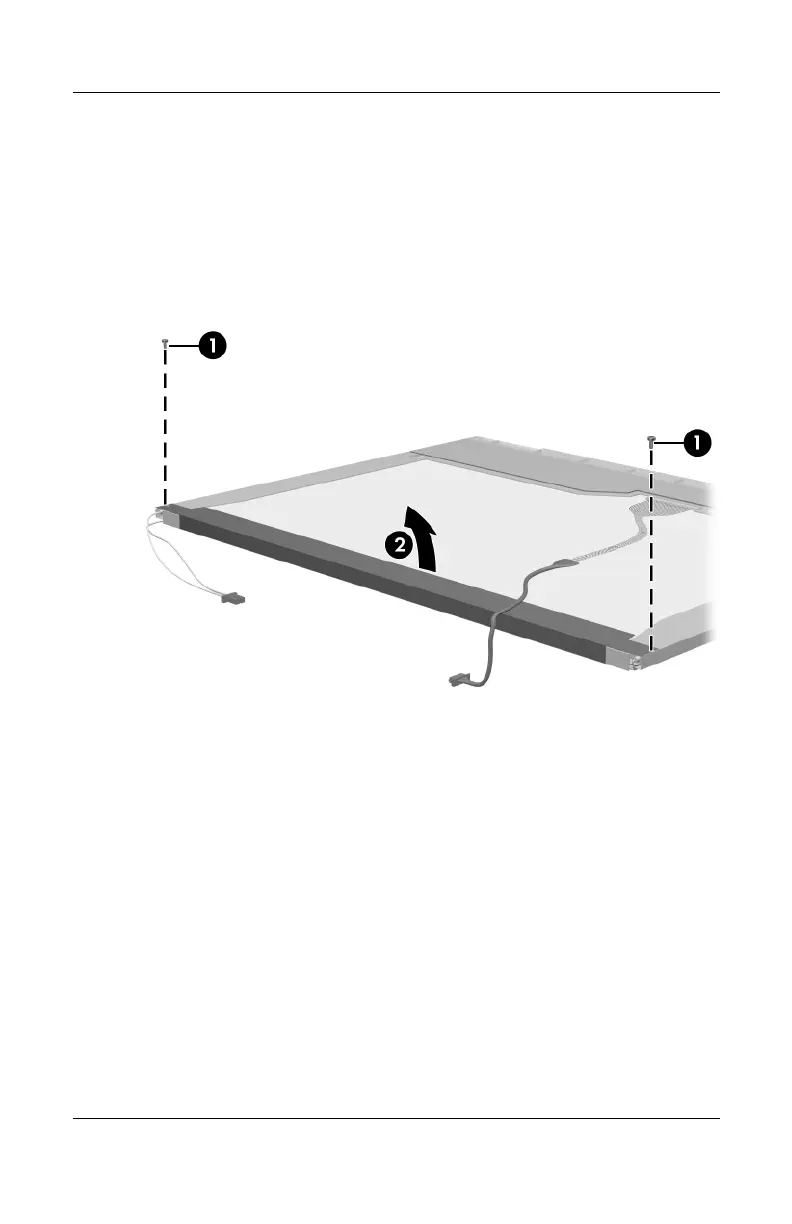

11. Remove the screws 1 that secure the backlight cover to
the LCD panel.
12. Lift the top edge of the backlight cover 2 and swing it
forward.
13. Remove the backlight cover.
Removing the Backlight Cover
