Illustrated parts catalog
Maintenance and Service Guide 3–9

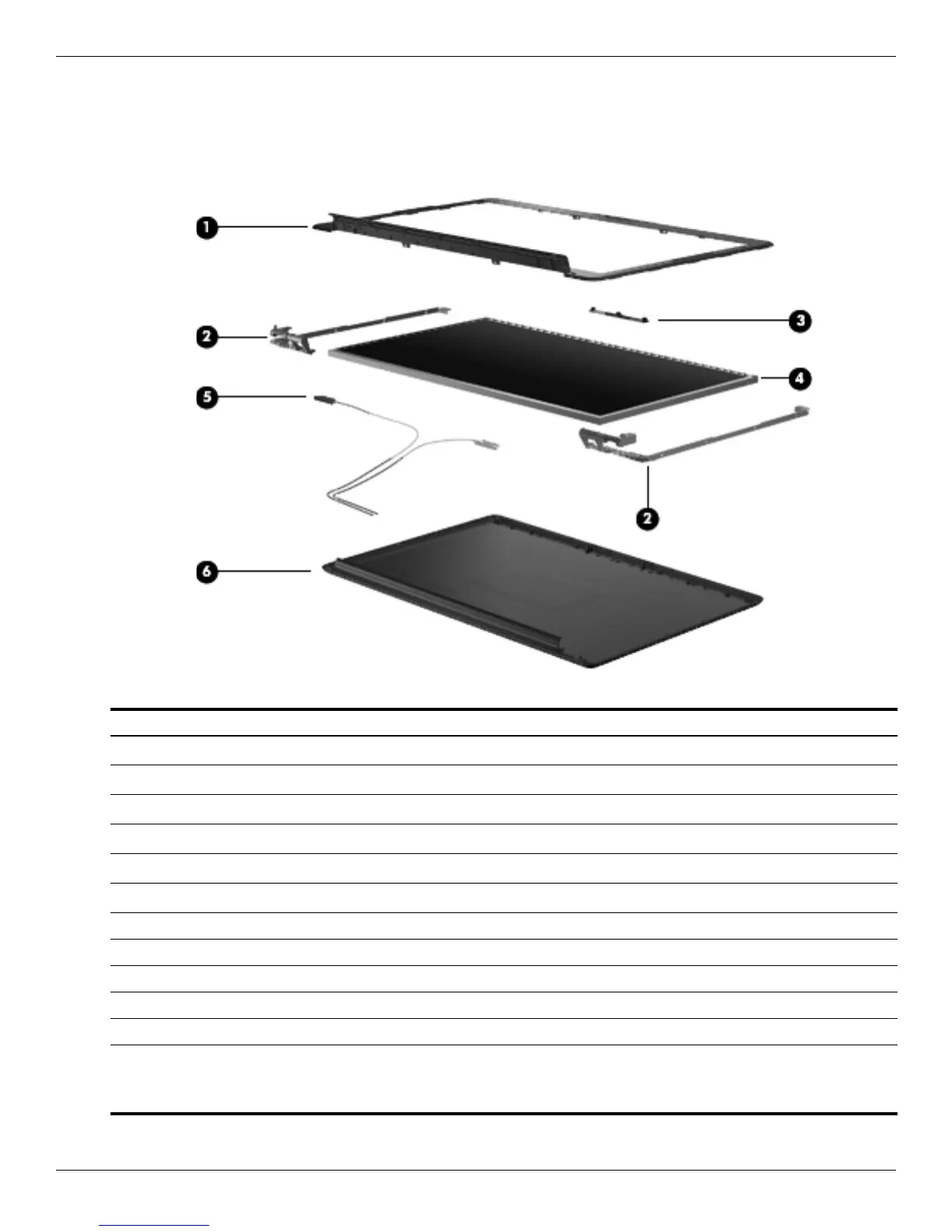

Display assembly components
BrightView panel
Item Description Spare part number
1
Display bezel 512364-001
2
Display Hinge Kit (includes right and left hinges and display panel cable) 574556-001
3
Webcam/microphone module 571742-001
4
Display panel 570095-001
5
Display panel (LED) cable 574554-001
6
Display enclosure (includes wireless antenna transceivers and cables and logo LED board and cable)
For use in white computers 570390-001
For use in black computers 570391-001
Display inverter (not illustrated) 488317-001
Lower trim cover (not illustrated) 533464-001
Display Rubber Kit (not illustrated, includes display bezel rubber screw covers) 512361-001
Display Screw Kit (not illustrated), includes:
■ Phillips PM2.0×3.0 screw
■ Phillips PM2.5×5.0 screw
512362-001
