Removal and replacement procedures
Maintenance and Service Guide 4–33

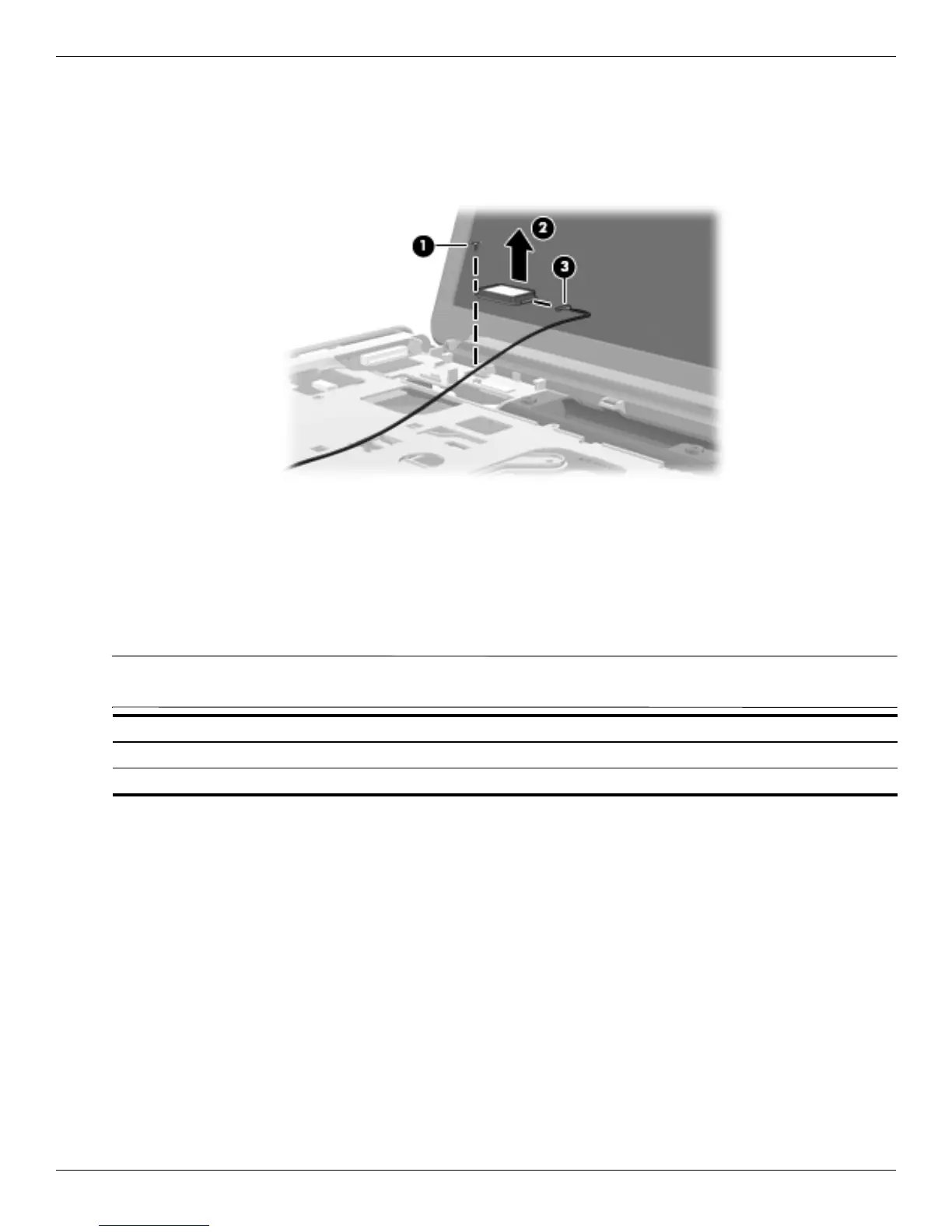

Remove the Bluetooth module:
1. Remove the Phillips PM2.0x3.0 screw 1 that secures the Bluetooth module to the top cover.
2. Release the Bluetooth module 2 as far from the top cover as the Bluetooth module cable allows.
3. Disconnect the Bluetooth module cable 3 from the Bluetooth module.
4. Remove the Bluetooth module.
Reverse this procedure to install the Bluetooth module.
Modem module
✎
The modem module spare part kit does not include a modem module cable. The modem module cable is
included in the Cable Kit, spare part number 512832-001.
Before removing the modem module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-6).
5. Remove the following components:
a. Hard drive (see “Hard drive” on page 4-14)
b. Optical drive (see “Optical drive” on page 4-9)
c. Switch cover and keyboard (see “Switch cover and keyboard” on page 4-18)
d. Display assembly (see “Display assembly” on page 4-24)
e. TV tuner module (see “TV tuner module” on page 4-12)
Description Spare part number
Modem module for use in all countries and regions except Australia and New Zealand 510100-001
For use only in Australia and New Zealand 510100-011
