Removal and replacement procedures
Maintenance and Service Guide 4–7

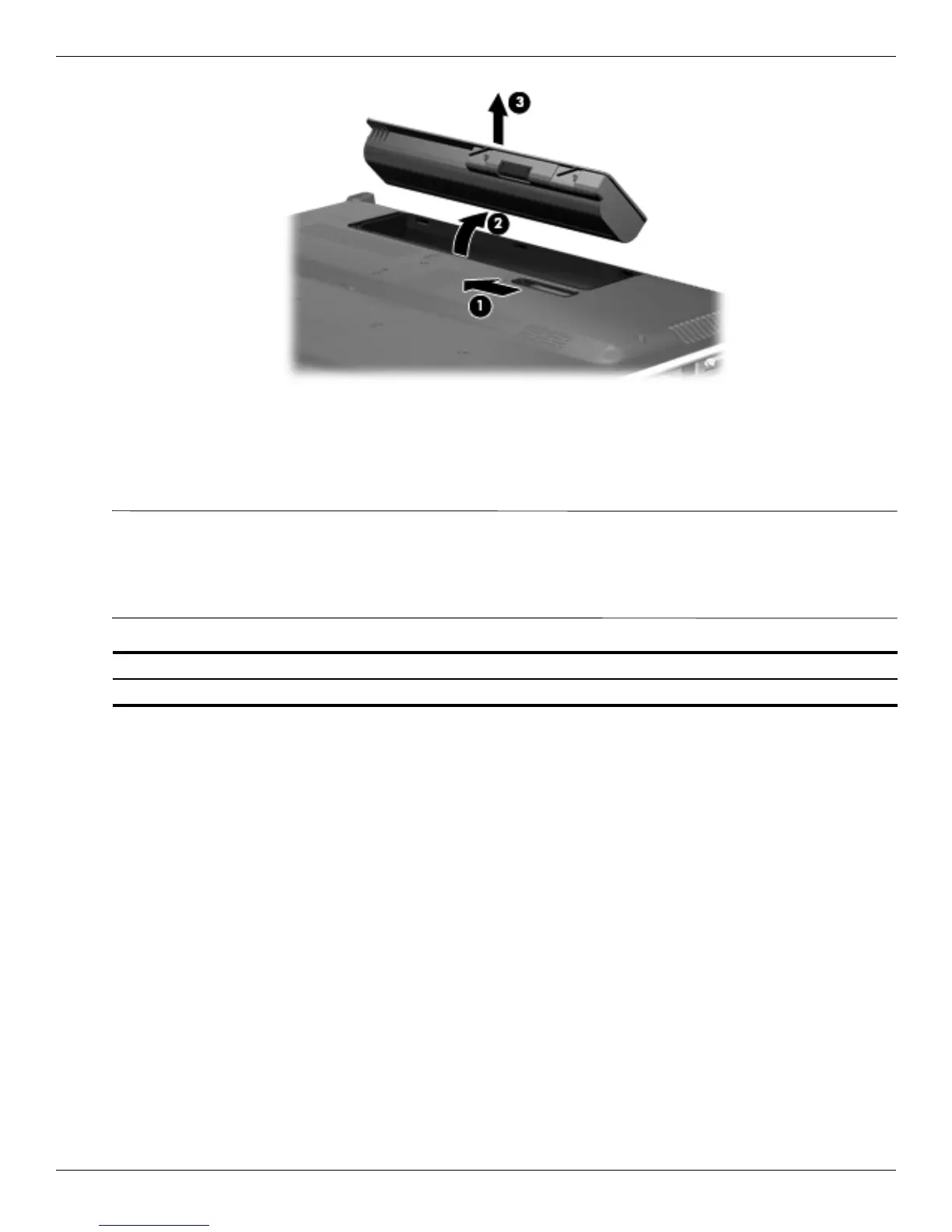

To install the battery, insert the rear edge of the battery into the battery bay and pivot the front edge of the battery
downward until it is seated. The battery release latch automatically locks the battery into place.
Webcam/microphone module
✎
This section applies only to computer models equipped with BrightView display assemblies.
If it has been determined that the webcam/microphone module is the component that must be replaced to
complete the computer repair, the display assembly does not have to be removed. Follow the procedures in this
section to replace the webcam/microphone module. For information on replacing the display assembly and other
display assembly internal components, see “Display assembly” on page 4-24.
Before removing the webcam/microphone module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-6).
Remove the webcam/microphone module:
1. Turn the computer display-side up, with the front toward you.
2. Open the computer as far as possible.
3. Flex the inside edges of the top edge 1 and the upper left and upper right corners 2 of the display bezel until
the bezel disengages from the display enclosure.
Description Spare part number
Webcam/microphone module with cable 571742-001
