4–8 Maintenance and Service Guide
Removal and replacement procedures

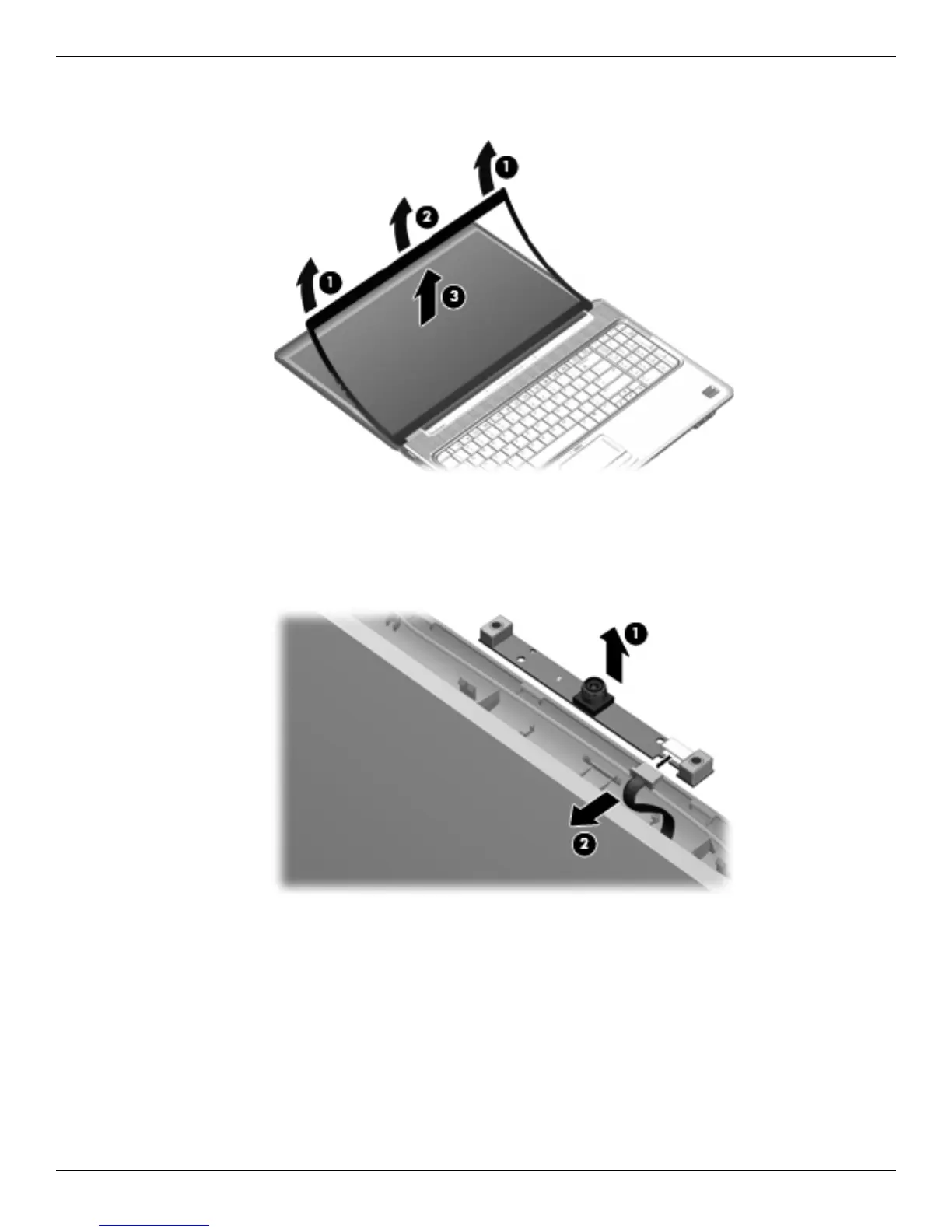

4. Release the display bezel top edge 3 from the display enclosure.
5. Release the webcam/microphone module 1 from the display enclosure as far as the webcam/microphone
module cable allows.
6. Disconnect the webcam/microphone module cable 2 from the webcam/microphone module.
7. Remove the webcam/microphone module.
Reverse this procedure to install the webcam/microphone module.
