HP Pavilion DV6110 Maintenance And Service Guide
4
of 1
of 1 rating
160 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

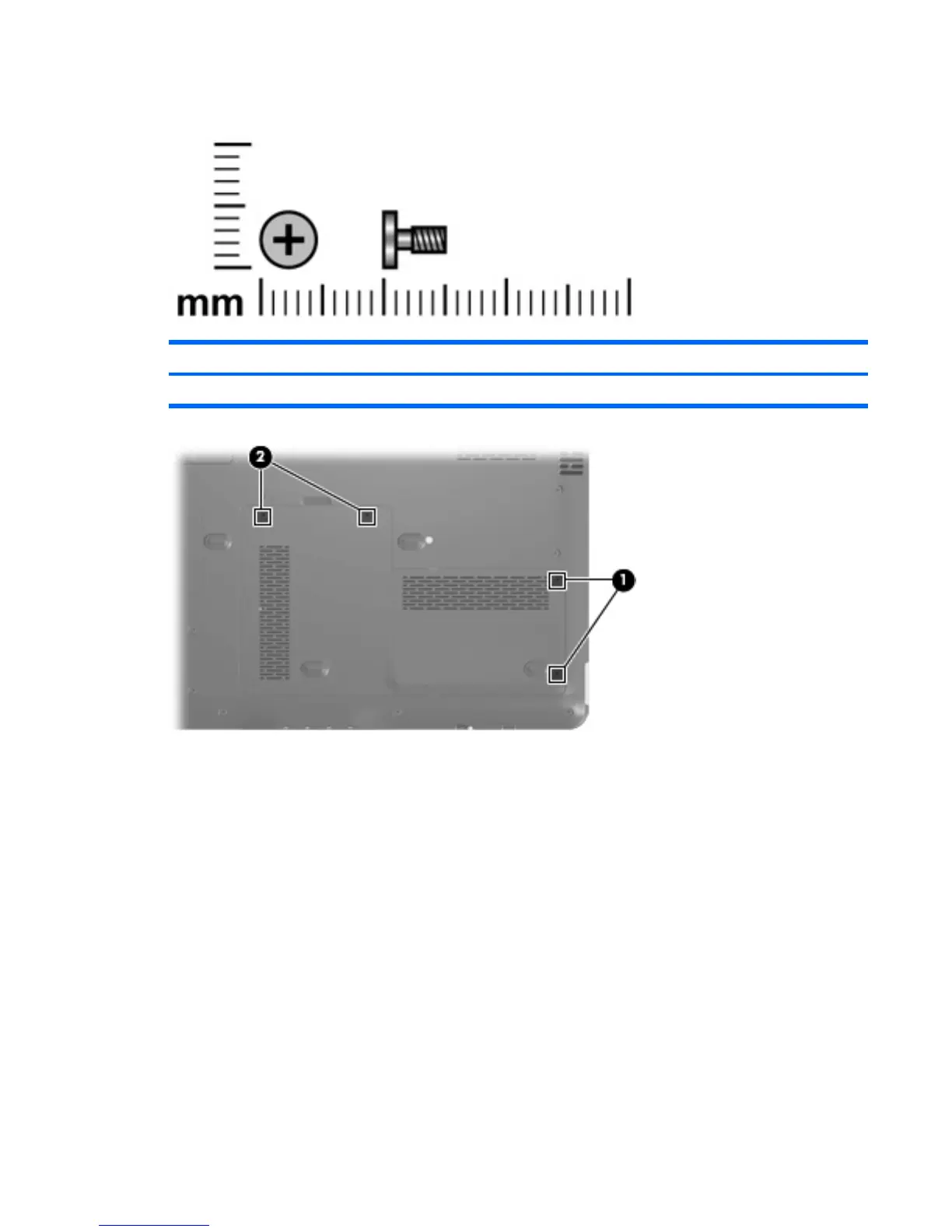

Phillips PM2.0×5.0 captive screw
Color
Quantity
Length
Thread
Head width
Black
4
5.0 mm
2.0 mm
5.0 mm
Where used:
(1)
Two screws (sec
ured by C-clips) that se
cure the hard dr
ive cover to the computer
(2)
Two screws (sec
ured by C-clips) that secure
the memory/WLAN module co
mpartment cover to the
computer
Phillips PM2.0×5.0
captive screw
115
122
124
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
15
Display Components
15
Top Components
16
Lights
16
Keys
17
Buttons, Speakers, and Fingerprint Reader
18
Touchpad
20
Front Components
21
Left-Side Components
22
Right-Side Components
23
Rear Component
23
Bottom Components
24
3 Illustrated Parts Catalog
25
Serial Number Location
25
Computer Major Components
26
Display Assembly Components
33
Plastics Kit
35
Cable Kit
36
Mass Storage Devices
37
Miscellaneous Parts
38
Sequential Part Number Listing
39
4 Removal and Replacement Procedures
47
Preliminary Replacement Requirements
47
Tools Required
47
Service Considerations
47
Plastic Parts
47
Cables and Connectors
48
Drive Handling
48
Grounding Guidelines
49
Electrostatic Discharge Damage
49
Packaging and Transporting Guidelines
50
Workstation Guidelines
50
Equipment Guidelines
51
Unknown User Password
52
Component Replacement Procedures
53
Serial Number
53
Battery
54
Camera Module
55
Display Inverter
57
Hard Drive
59
Computer Feet
61
Memory Module
61
RTC Battery
63
WLAN Module
64
Optical Drive
67
Switch Cover
69
Speaker Assembly
71
Power Button Board
72
Keyboard
73
Display Assembly
76
Top Cover
82
Bluetooth Module
86
Expresscard Assembly
87
Usb/Power Connector Board
89
System Board
90
Audio Board
93
Fan/Heat Sink Assembly
94
Processor
96
5 Setup Utility
99
Starting the Setup Utility
99
Using the Setup Utility
100
Changing the Language of the Setup Utility
100
Navigating and Selecting in the Setup Utility
100
Displaying System Information
100
Restoring Default Settings in the Setup Utility
101
Using Advanced Setup Utility Features
102
Closing the Setup Utility
102
Setup Utility Menus
102
Main Menu
102
Security Menu
103
System Configuration Menu
103
Diagnostics Menu
103
6 Specifications
104
Computer Specifications
104
15.4-Inch, WXGA, Brightview Display Specifications
105
Hard Drive Specifications
106
DVD±RW and CD-RW Supermulti Double-Layer Combo Drive Specifications
107
HD DVD-ROM Drive with Supermulti DVD±R/RW Double Layer Support Specifications
108
Blu-Ray Disc ROM Drive with Supermulti DVD±R/RW Double-Layer (DL) Support Specifications
109
System DMA Specifications, Intel
110
System DMA Specifications, AMD Discrete and UMA Graphics
111
System Interrupt Specifications, Intel
112
System Interrupt Specifications, AMD Discrete Graphics
113
System Interrupt Specifications, AMD UMA Graphics
114
System I/O Address Specifications, Intel
115
System I/O Address Specifications, AMD Discrete and UMA Graphics
117
System Memory Map Specifications, Intel
119
System Memory Map Specifications, AMD Discrete Graphics
120
System Memory Map Specifications, AMD UMA Graphics
121
7 Screw Listing
122
Phillips PM2.0×5.0 Captive Screw
123
Phillips PM3.0×4.0 Screw
124
Phillips PM2.0×3.0 Screw
125
Phillips PM2.5×7.0 Screw
127
Phillips PM2.5×5.0 Screw
130
Phillips PM2.5×2.0 Screw
132
Phillips PM2.5×4.0 Screw
133
Hex HM5.0×9.0 Standoff
135
Phillips PM2.0×2.0 Screw
136
Phillips PM2.5×5.0 Captive Screw
137
Phillips 2.5×4.0 Captive Screw
138
8 Backup and Recovery
139
Recovering System Information
139
Creating Recovery Discs
139
Backing up Your Information
140
Backup Suggestions
140
When to Back up
140
Create a System Restore Point
141
Restore to a Previous Date and Time
141
Using System Restore Points
141
When to Create Restore Points
141
Performing a Recovery
142
Recovering from the Partition on the Hard Drive
142
Recovering from the Recovery Discs
142
9 Connector Pin Assignments
143
Audio-In (Microphone)
143
Audio-Out (Headphone)
143
External Monitor
144
Modem)
145
Network)
145
S-Video-Out
146
Universal Serial Bus
146
10 Power Cord Set Requirements
147
Requirements for All Countries or Regions
147
Requirements for Specific Countries or Regions
148
11 Recycling
149
Battery
149
Display
149
