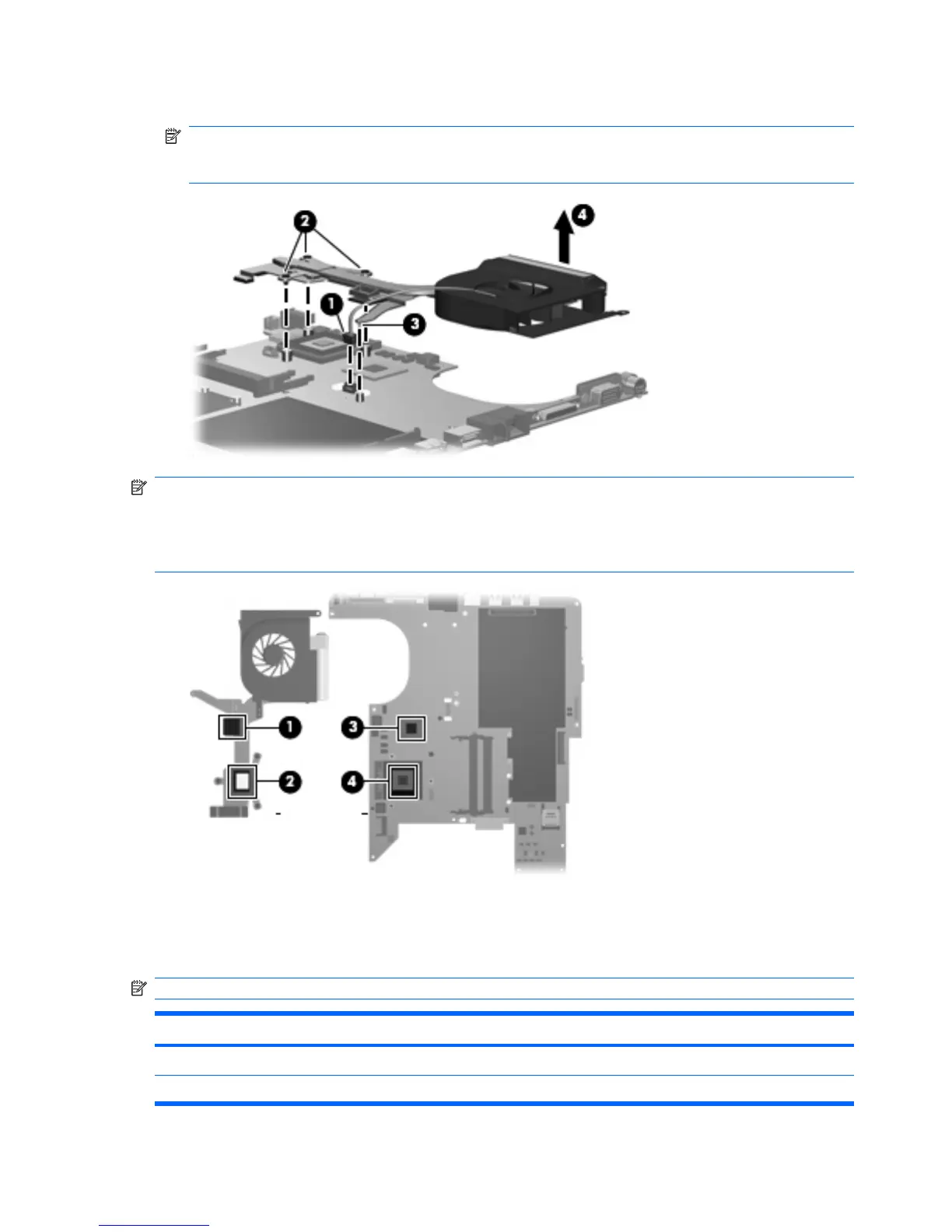

4. Remove the fan/heat sink assembly (4).
NOTE: Due to the adhesive quality of the thermal paste and thermal pads located between the
fan/heat sink assembly and system board components, it may be necessary to move the fan/heat
sink assembly from side to side to detach the assembly.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink
assembly (1) and (2), the processor (3), and the system board component (4) each time the fan/heat
sink assembly is removed. Thermal material must be installed on all surfaces before the fan/heat sink
assembly is reinstalled. Thermal material is included with all fan/heat sink assembly, system board, and
processor spare part kits.
Reverse this procedure to install the fan/heat sink assembly.
Processor
NOTE: All processor spare part kits include thermal paste.
Description Spare part number
Intel Core 2 Duo processors:
2.20-GHz processor (4-MB L2 cache, 800-MHz FSB)
453771-001
88 Chapter 4 Removal and replacement procedures
