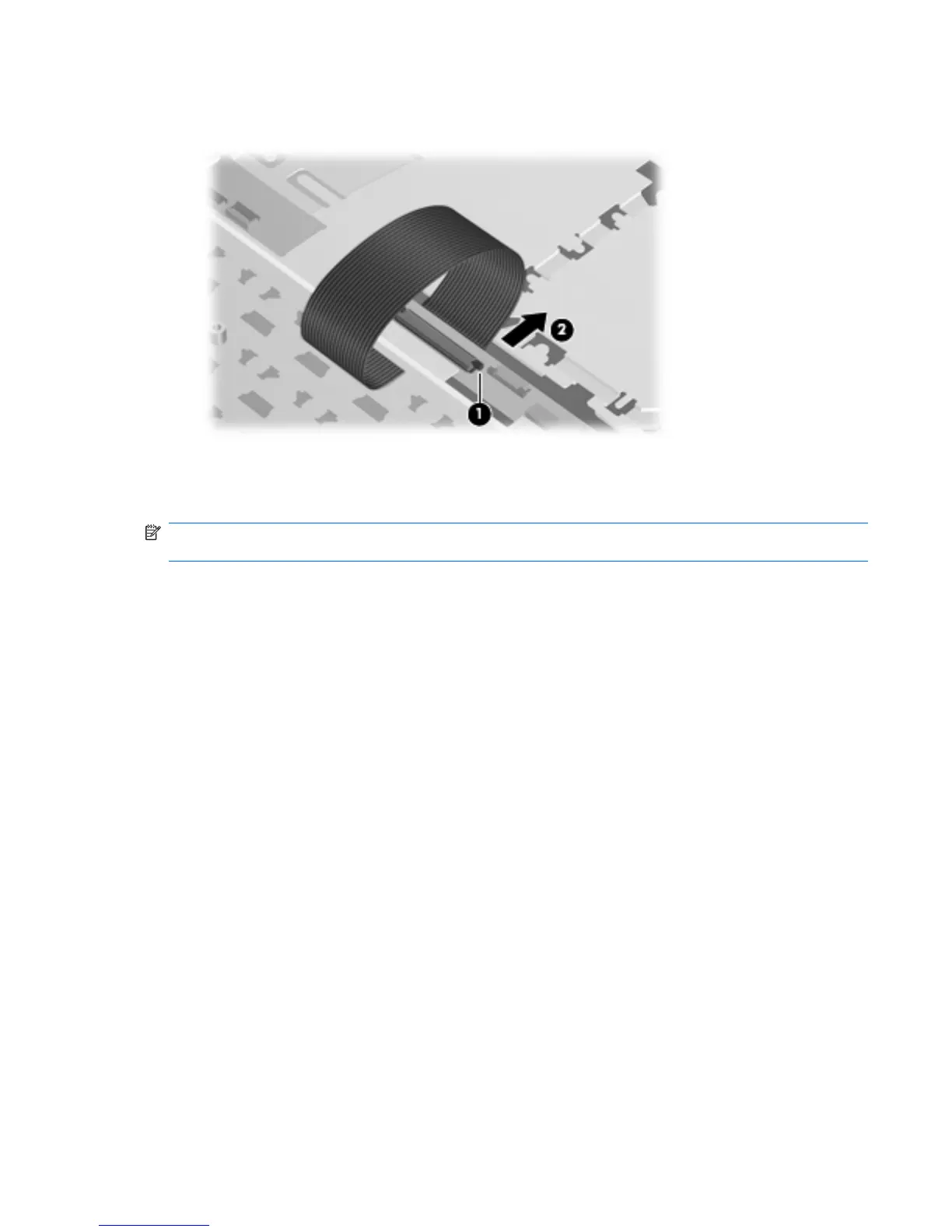

8. Release the ZIF connector (1) to which the keyboard cable is attached and disconnect the keyboard
cable (2) from the system board.
9.
Remove the keyboard.
Reverse this procedure to install the keyboard.
NOTE: The power button board cable and LED board cable are included in the Cable Kit, spare part
number 446519-001.
Component replacement procedures 67
