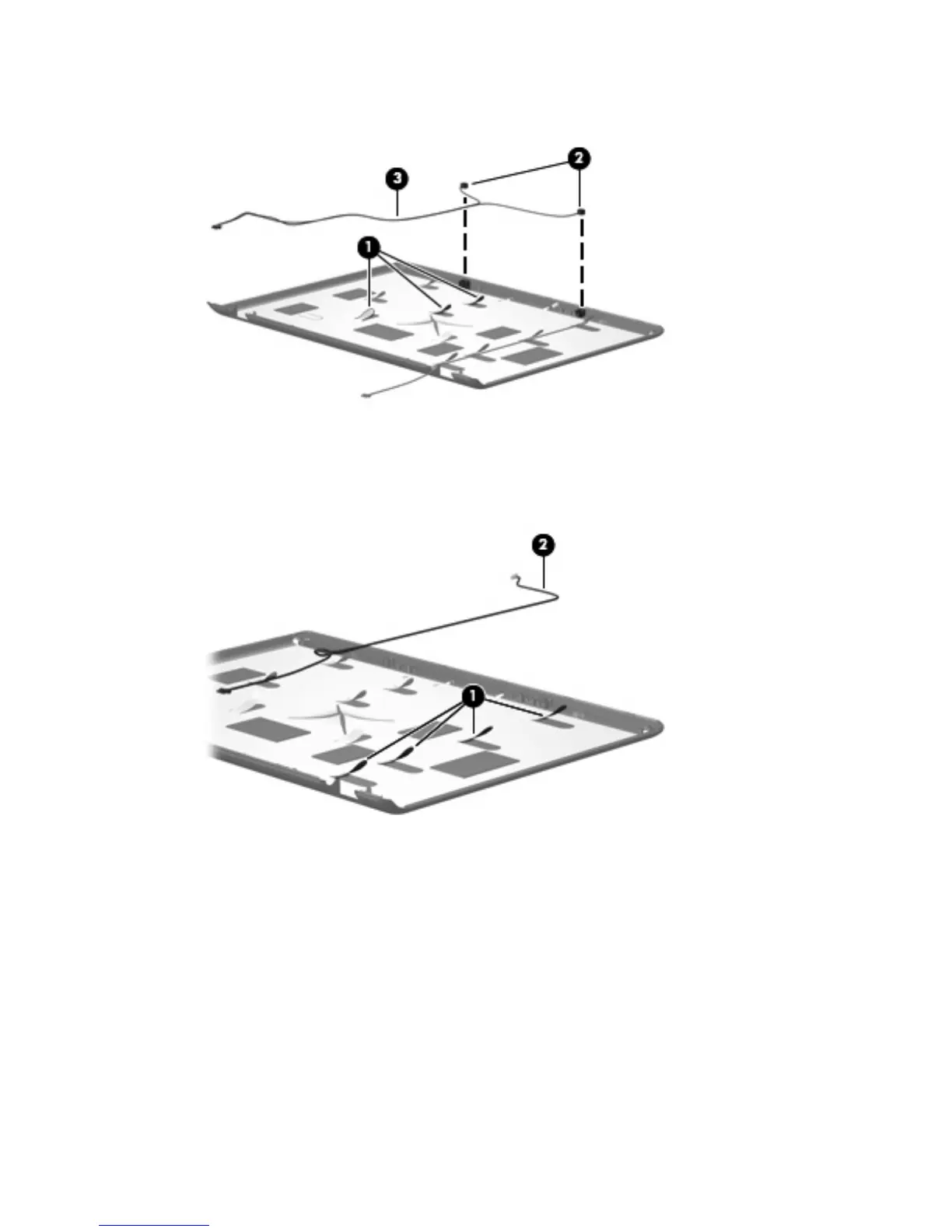

22. Remove the microphone cables (3) from the display enclosure. The microphones and cables are
available using spare part number 431393-001.
23. If it is necessary to replace the camera cable, release the retention tabs (1) built into the display
enclosure that secure the camera cable to the display enclosure.
24. Remove the camera cable (2) from the display enclosure. The camera cable is included in the Display
Cable Kit, spare part number 431394-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 73
