d.
Keyboard (see
Keyboard on page 65)
e.
Speaker assembly (see
Speaker assembly on page 63)
f.
Display assembly (see
Display assembly on page 68)
g.
Top cover (see
Top cover on page 74)
h.
Audio board (see
Audio board on page 85)
i.
USB/power connector board (see
USB/power connector board on page 81)
j.
System board (see
System board on page 82)
k.
Fan/heat sink assembly (see
Fan/heat sink assembly on page 86)

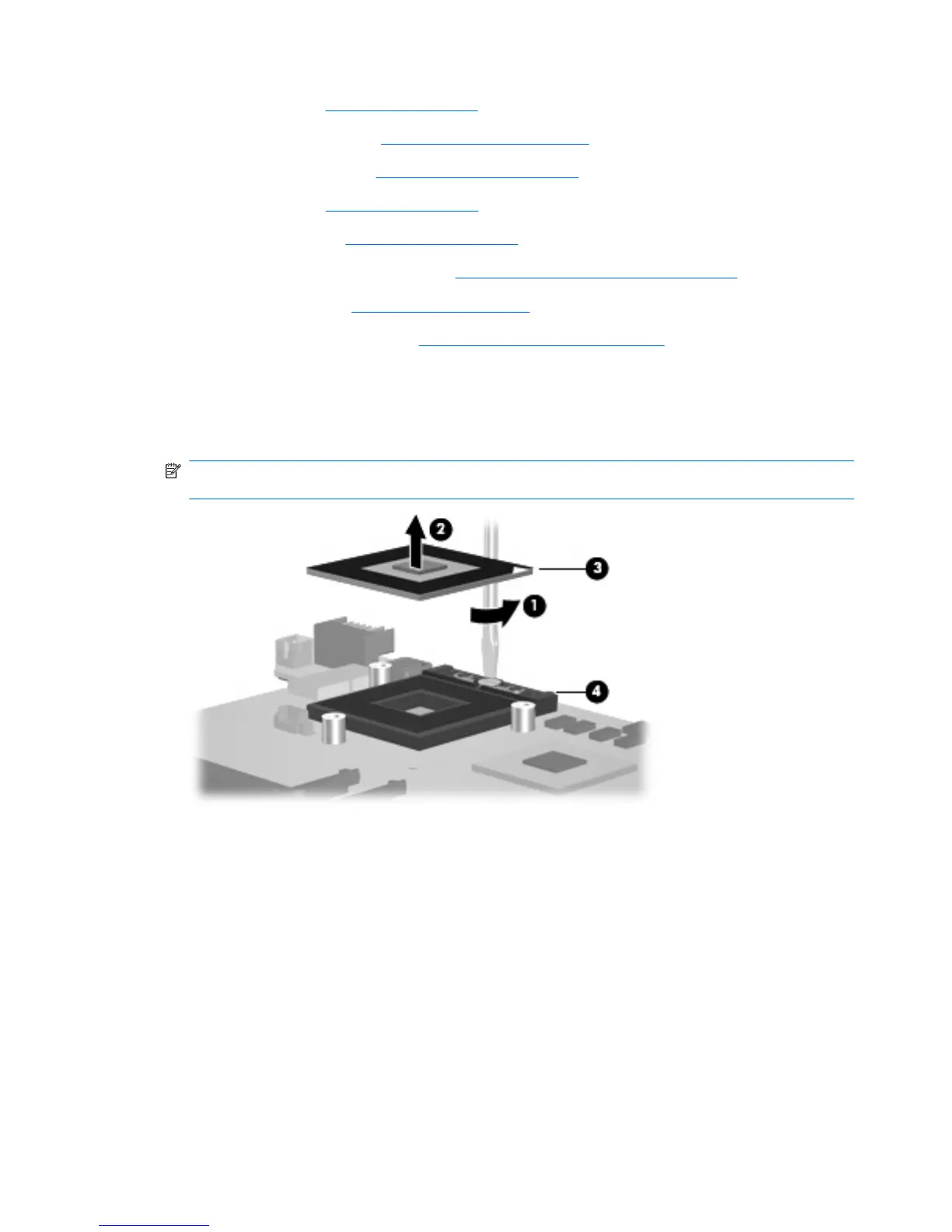

Remove the processor:
1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
90 Chapter 4 Removal and replacement procedures
