5–16 Maintenance and Service Guide
Removal and Replacement Procedures
✎
Before disconnecting the antenna cables, make note of which
cable is attached to which antenna clip on the Mini PCI
communications module.
3. Disconnect the auxiliary and main antenna cables 1 from
the Mini PCI communications module.
4. Spread the two retaining tabs 2 on each side of the
Mini PCI socket to release the Mini PCI communications
module. (The edge of the module opposite the socket rises
away from the computer.)
5. Remove the Mini PCI communications module by pulling
the card away from the socket at a 45-degree angle 3.
✎
The Mini PCI communications module is designed with a
notch 4 to prevent incorrect installation.

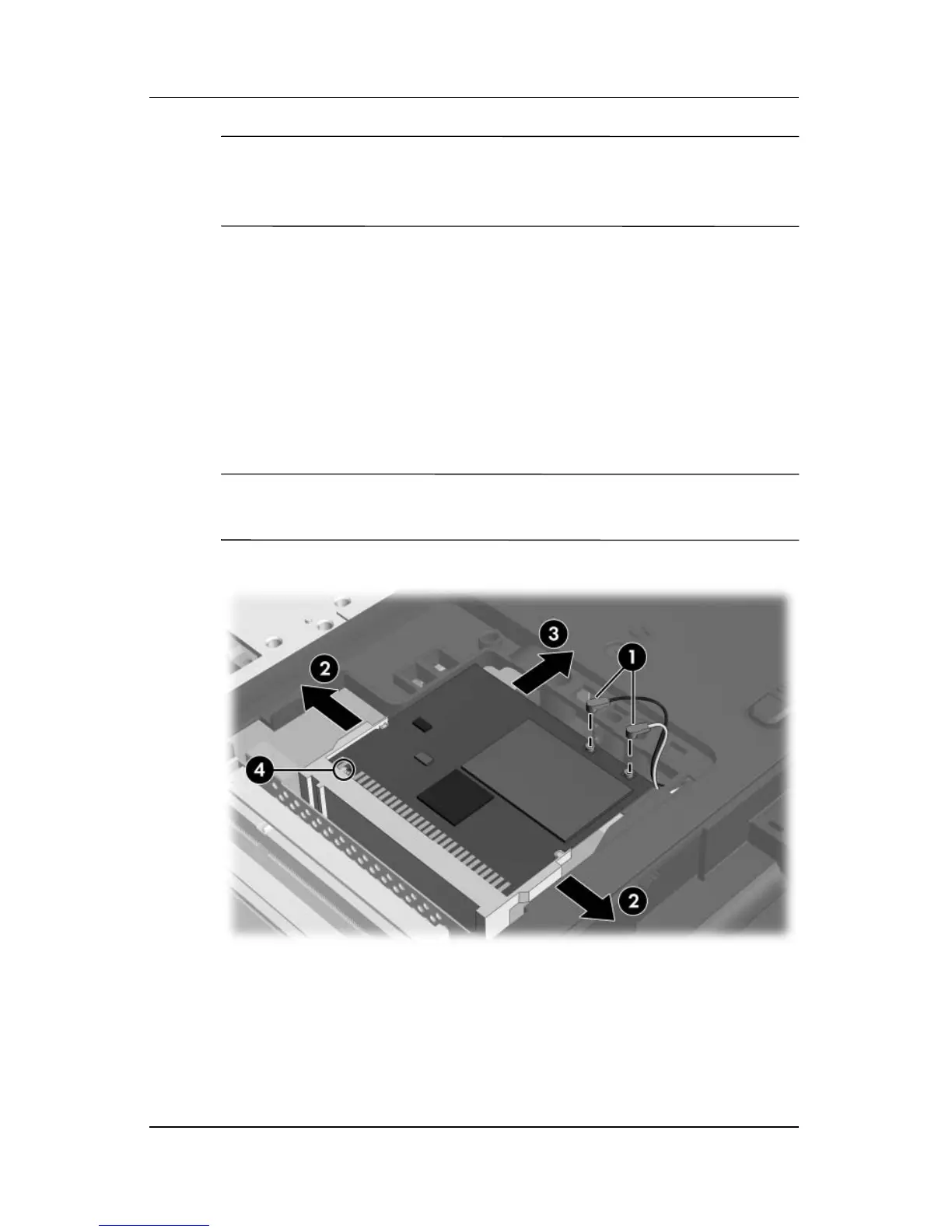

Removing a Mini PCI Communications Module
Reverse the above procedure to install a Mini PCI
communications module.
