Removal and Replacement Procedures
Maintenance and Service Guide 5–23
5.11 Keyboard Assembly Frame
1. Prepare the computer for disassembly (Section 5.3).
2. Remove the memory/Mini PCI module compartment cover
(Section 5.6).
3. Remove the switch cover (Section 5.10).
4. Turn the computer upside down with the front toward you.
5. Remove the Phillips PM2.5×13.0 screw 1 in the
memory/Mini PCI module compartment that secures the
keyboard assembly frame to the computer.
6. Remove the silver Phillips PM2.5×6.0 screw 2 in the battery
bay that secures the keyboard assembly frame to the
computer.

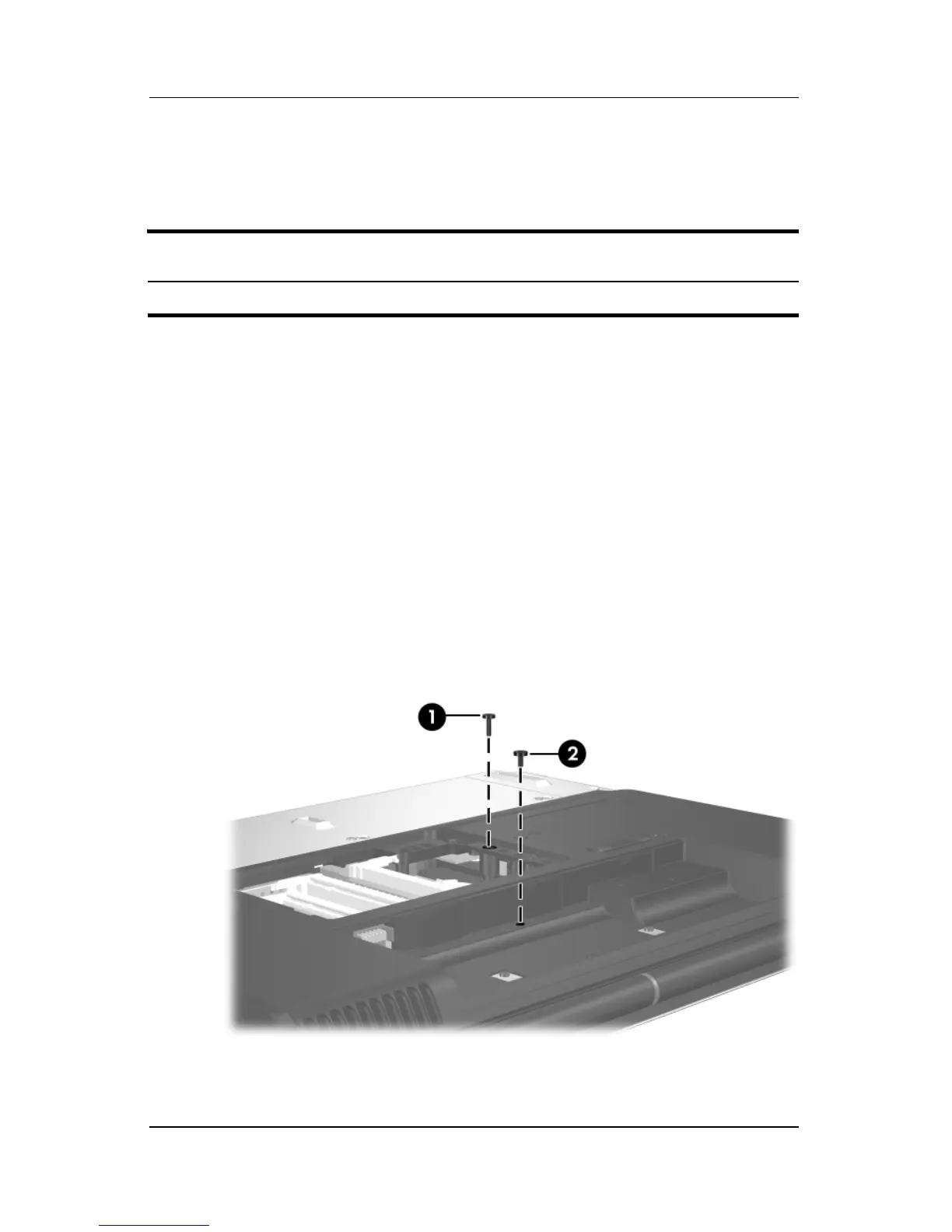

Removing the Keyboard Assembly Frame Screws
Keyboard Assembly Frame Spare Part Number Information
Keyboard assembly frame 403818-001
