Removal and Replacement Procedures
Maintenance and Service Guide 5–33
4. Remove the switch cover (Section 5.10).
5. Remove the keyboard assembly frame (Section 5.11).
6. Disconnect the display cable 1 from the system board.
7. Remove the wireless antenna cables from the clips 2 in the
top cover.

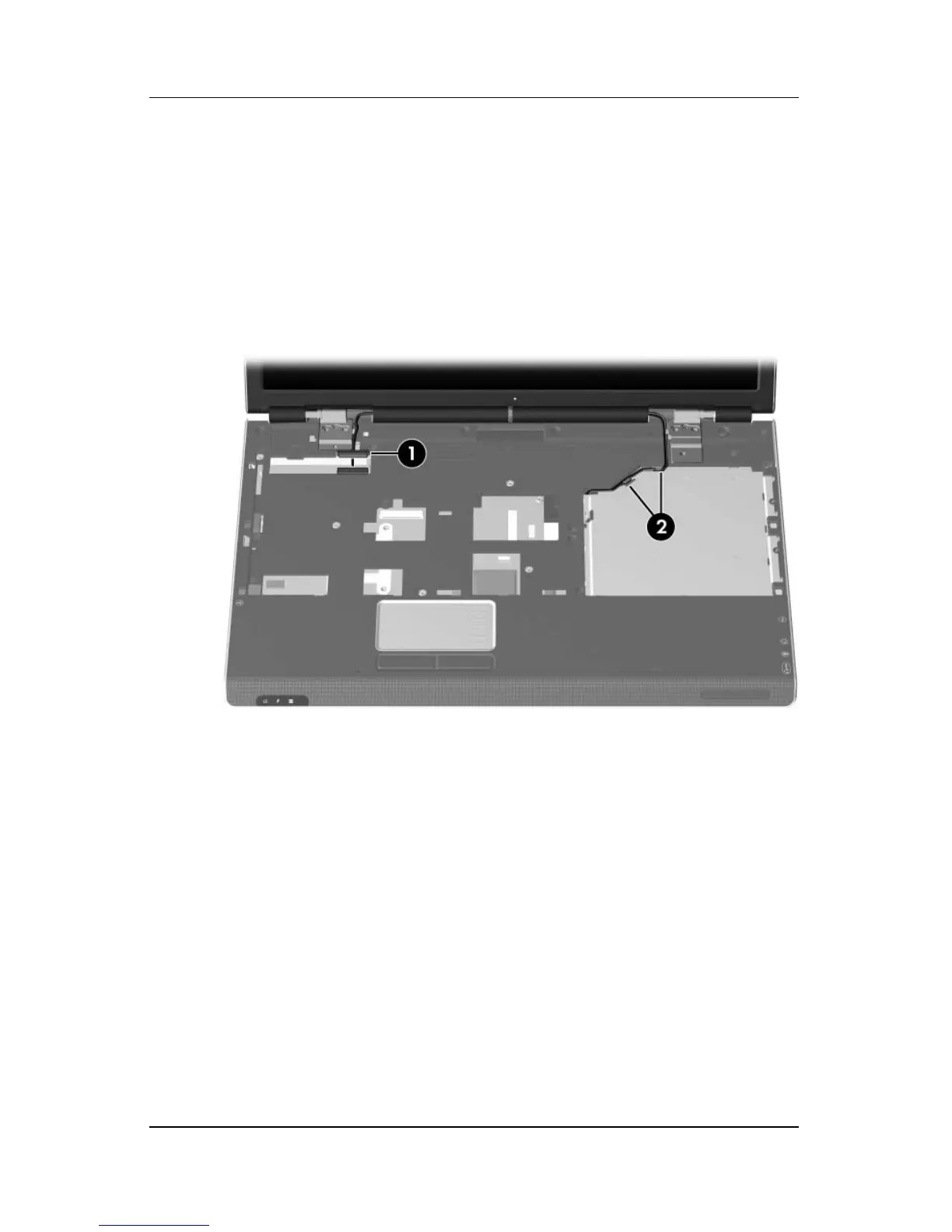

Disconnecting the Display and Wireless Antenna Cables
To Next Page
