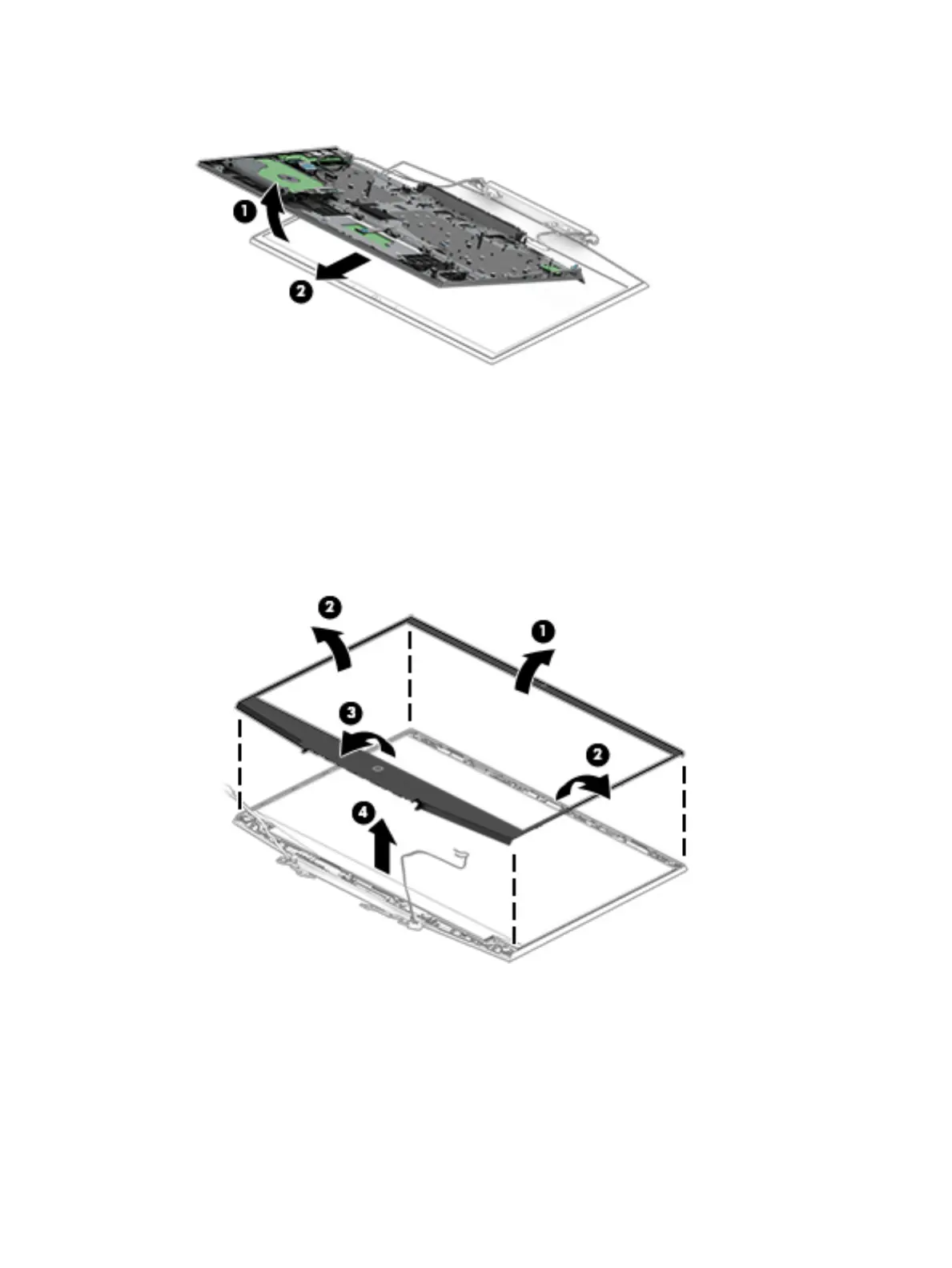

3. Slide the display assembly (2) away from the keyboard/top cover and remove the display assembly.
4. If it is necessary to replace the display bezel or any of the display assembly subcomponents:
a. Release the top edge of the display bezel (1) from the display assembly.
b. Release the left and right edges of the display bezel (2) from the display assembly.
c. Release the bottom edge of the display bezel (3) from the display assembly.
d. Remove the display bezel (4).
The display bezel is available using spare part number L58774-001.
5. If it is necessary to replace the display hinges:
a. Remove the display bezel.
b. Remove the six Phillips M2.5×2.7 broad head screws (1) that secure the display hinges to the display
back cover.
66 Chapter 5 Removal and replacement procedures
