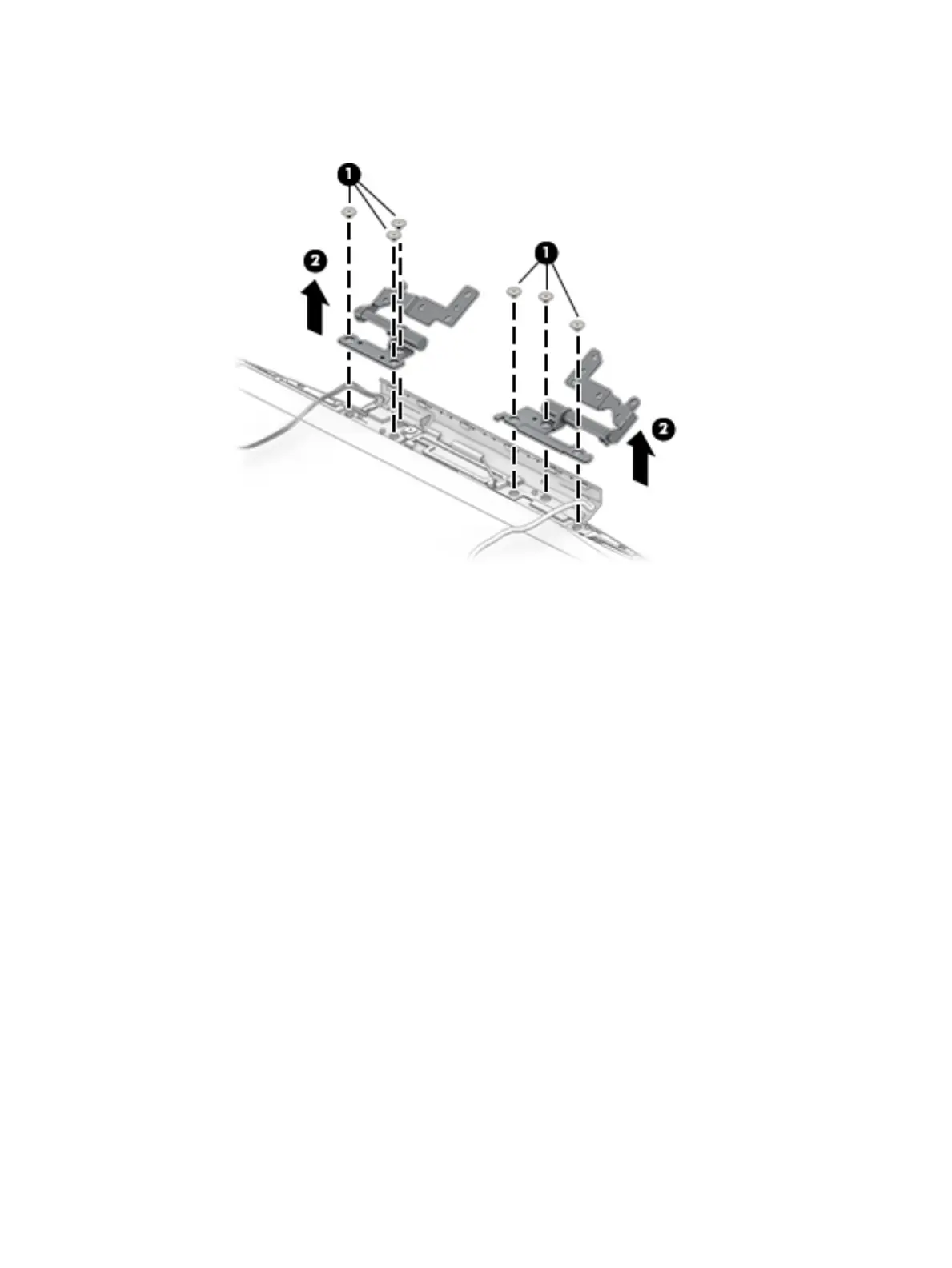

c. Remove the display hinges (2).
The display hinges are available using spare part number L56910-001.
6. If it is necessary to replace the display panel:
a. Remove the display bezel.
b. Remove the display hinges.
c. Disconnect the webcam/microphone module cable (1) from the webcam/microphone module.
d. Use a pair of tweezers or similar thin tool to grasp the pull-to-release adhesive tabs (2) in the lower
left and right corners of the display panel.
e. Using steady pressure, slowly pull the pull-to-release adhesive tabs (3) to detach the display panel
from the display back cover.
f. Remove the display panel (4).
The display panel is available using the following spare part numbers:
● L56920-001 – 15.6-in, UHD (3840×2160), AntiGlare, WLED, LCD, UWVA, 72, 340, eDP 1.3+PSR,
ultraslim
● L56919-001 – 15.6-in, FHD, (1920×1080), AntiGlare, WLED, LCD, UWVA, 72, 300, eDP 1.4+PSR,
ultraslim, 144-MHz
● L56918-001 – 15.6-in, FHD, (1920×1080), AntiGlare, WLED, LCD, UWVA, 72, 300, eDP 1.2,
ultraslim
● L56918-001 – 15.6-in, FHD, (1920×1080), AntiGlare, WLED, LCD, UWVA, 45, 250, slim
Component replacement procedures 67
