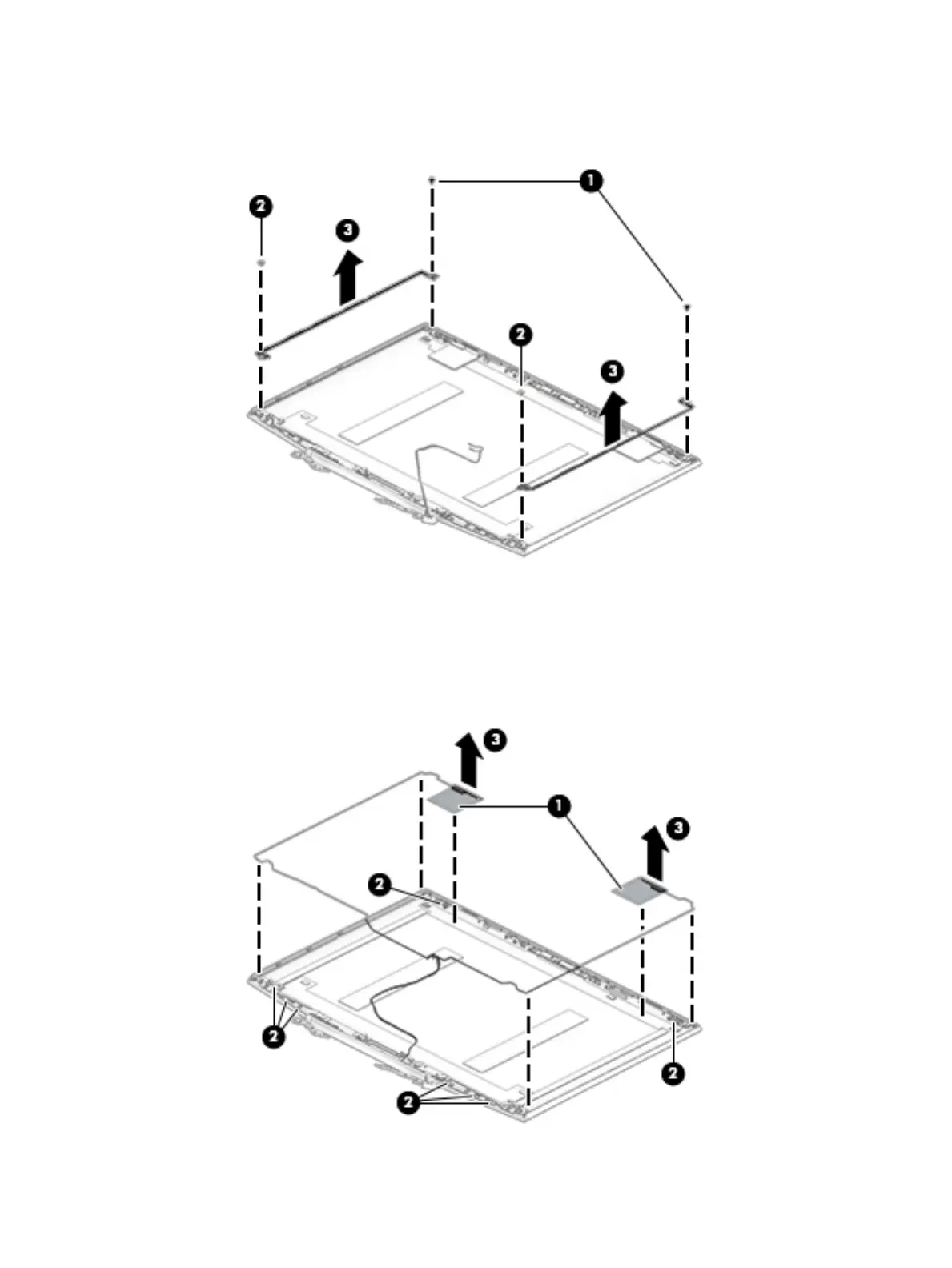

f. Remove the display brackets (3).
The display brackets are not available as a spare part.
g. Detach the wireless antenna transceivers (1) from the display back cover.
h. Release the wireless antenna cables from the retention clips (2) and routing channels built into
the top, left and right, and bottom edges of the display back cover.
i. Remove the wireless antenna transceivers and cables (3).
The wireless antenna transceivers and cables are available using spare part number L56913-001.
Component replacement procedures 71
