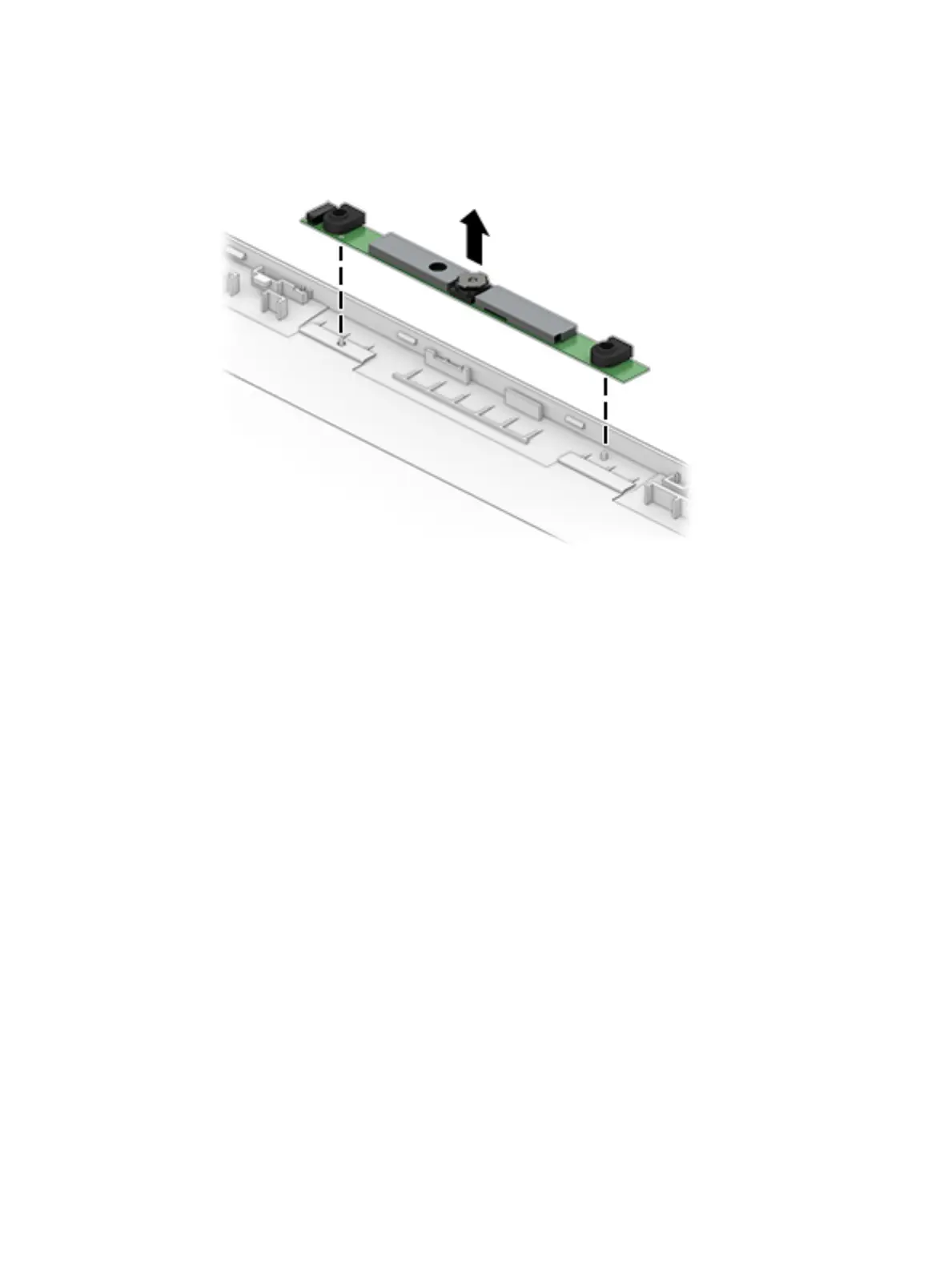

d. Detach the webcam/microphone module from the display back cover. (The webcam/microphone
module is attached to the display back cover with double-sided adhesive.)
The webcam/microphone module is available using spare part number L56916-001.
9. If it is necessary to replace the wireless antenna:
a. Remove the display bezel.
b. Remove the display hinges.
c. Remove the display panel.
d. Remove the two Phillips M2.0×2.6 screws (1) that secure the display brackets to the display
back cover.
e. Remove the two Phillips M2.5×2.7 broad head screws (2) that secure the display brackets to
the display back cover.
70 Chapter 5 Removal and replacement procedures
