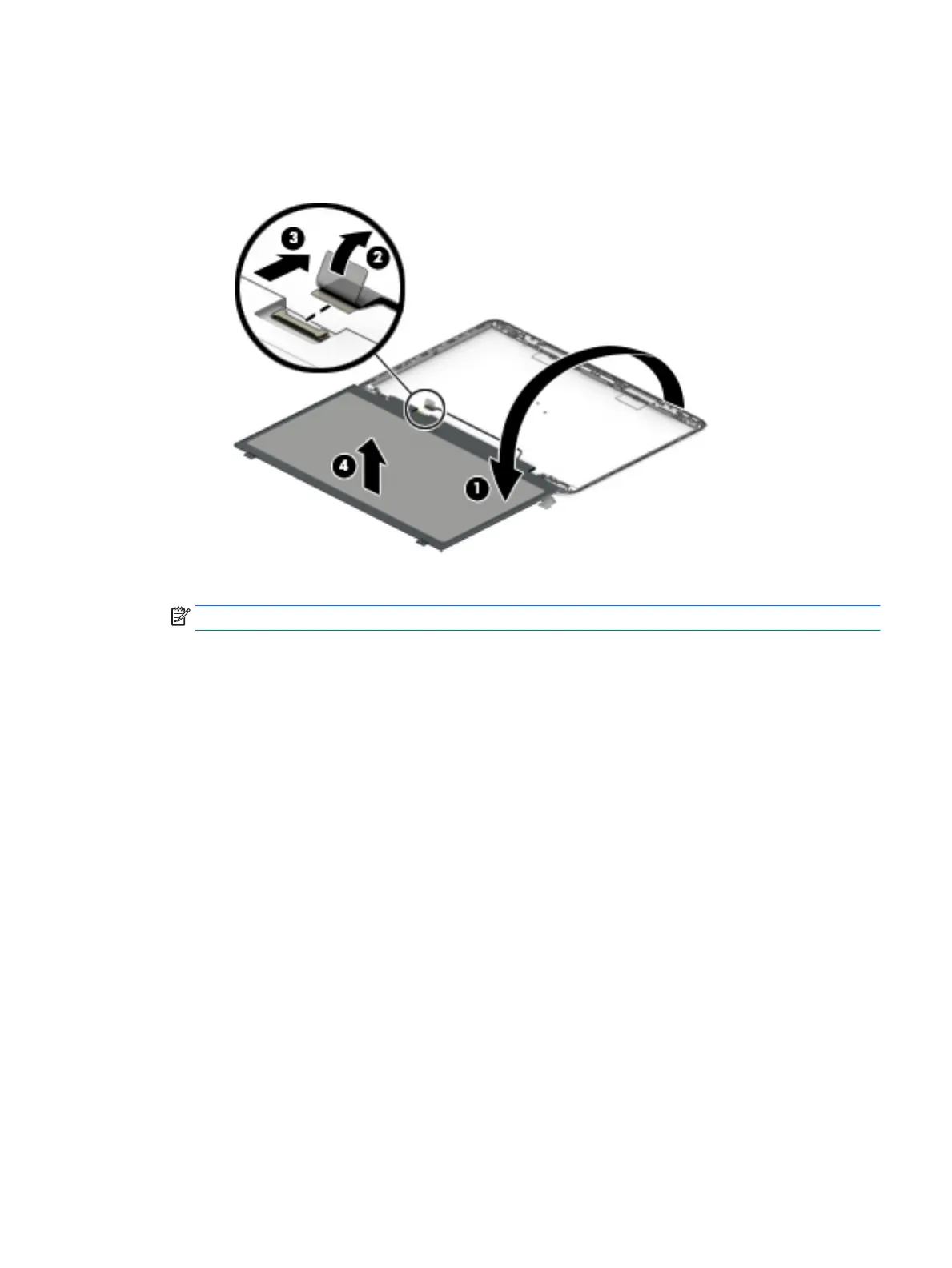

f. Remove the display panel (4).
The display panel is available using the following spare part numbers 847660-001 (14.0-in, FHD,
LCD, BrightView (1920×1080), UWVA, eDP, slim-at (3.0-mm) display panel) and 847664-001
(14.0-in, HD, LCD, BrightView (1366×768), SVA, eDP, slim-at (3.0-mm) display panel).
8. If it is necessary to replace the display panel cable:
NOTE: The display panel cable includes the webcam/microphone module cable.
a. Remove the display bezel.
b. Remove the display panel.
c. Disconnect the display panel cable (1) from the webcam/microphone module.
d. Release the display panel cable from the routing clips (2) and channels built into the top, right,
and bottom edges of the display back cover.
Component replacement procedures 45
