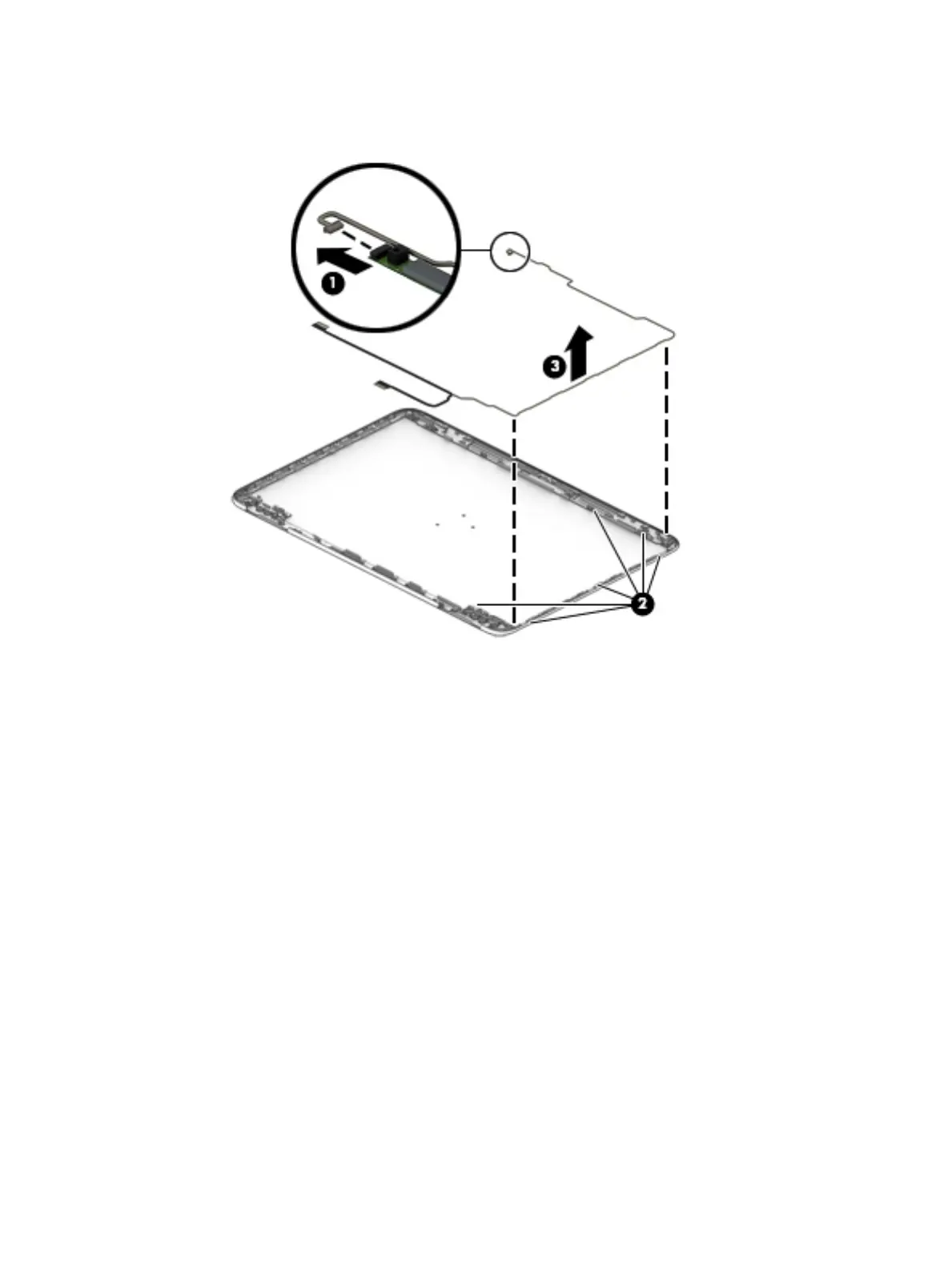

e. Remove the display panel cable (3).
The display panel cable is available using the following spare part number 856200-001.
9. If it is necessary to replace the webcam/microphone module:
a. Remove the display bezel.
b. Remove the display panel.
c. Detach the webcam/microphone module (1) from the display back cover. (The webcam/
microphone module is secured to the display back cover with double-sided adhesive.)
d. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
46 Chapter 5 Removal and replacement procedures
