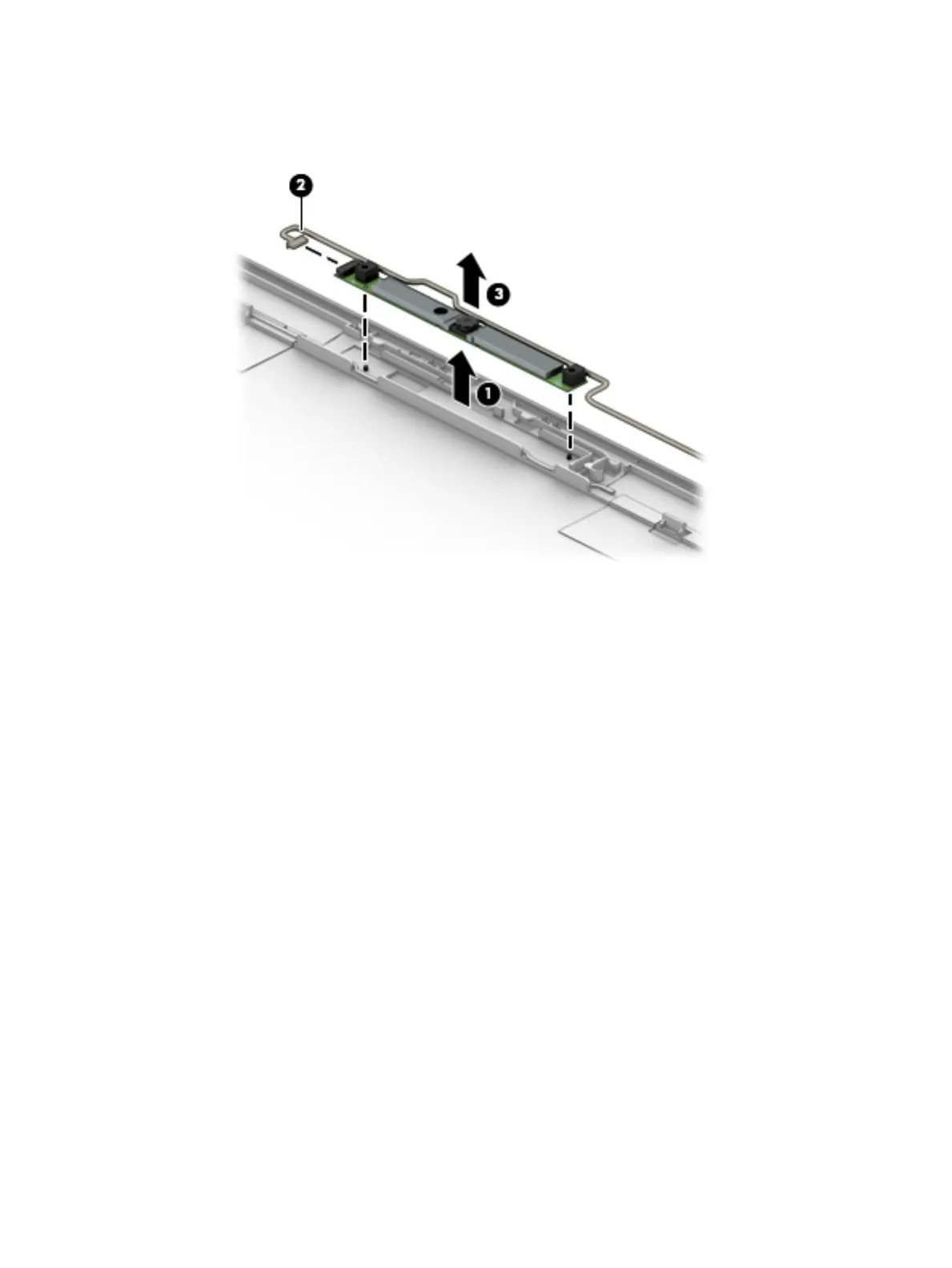

e. Remove the webcam/microphone module (3).
The webcam/microphone module is available using spare part number 846006-003.
10. If it is necessary to replace the display hinges:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the two Phillips PM2.0×2.9 screws (1) that secure the display hinges to the display
back cover.
d. Remove the six Phillips PM2.5×3.2 screws (2) that secure the display hinges to the display
back cover.
Component replacement procedures 47
