e. Remove the display hinges (3).
The display hinges are available using spare part number 856207-001.
11. If it is necessary to replace the antenna:
NOTE: The antenna includes the auxiliary and main antenna cables and transceivers.
a. Remove the display bezel.
b. Remove the display panel.

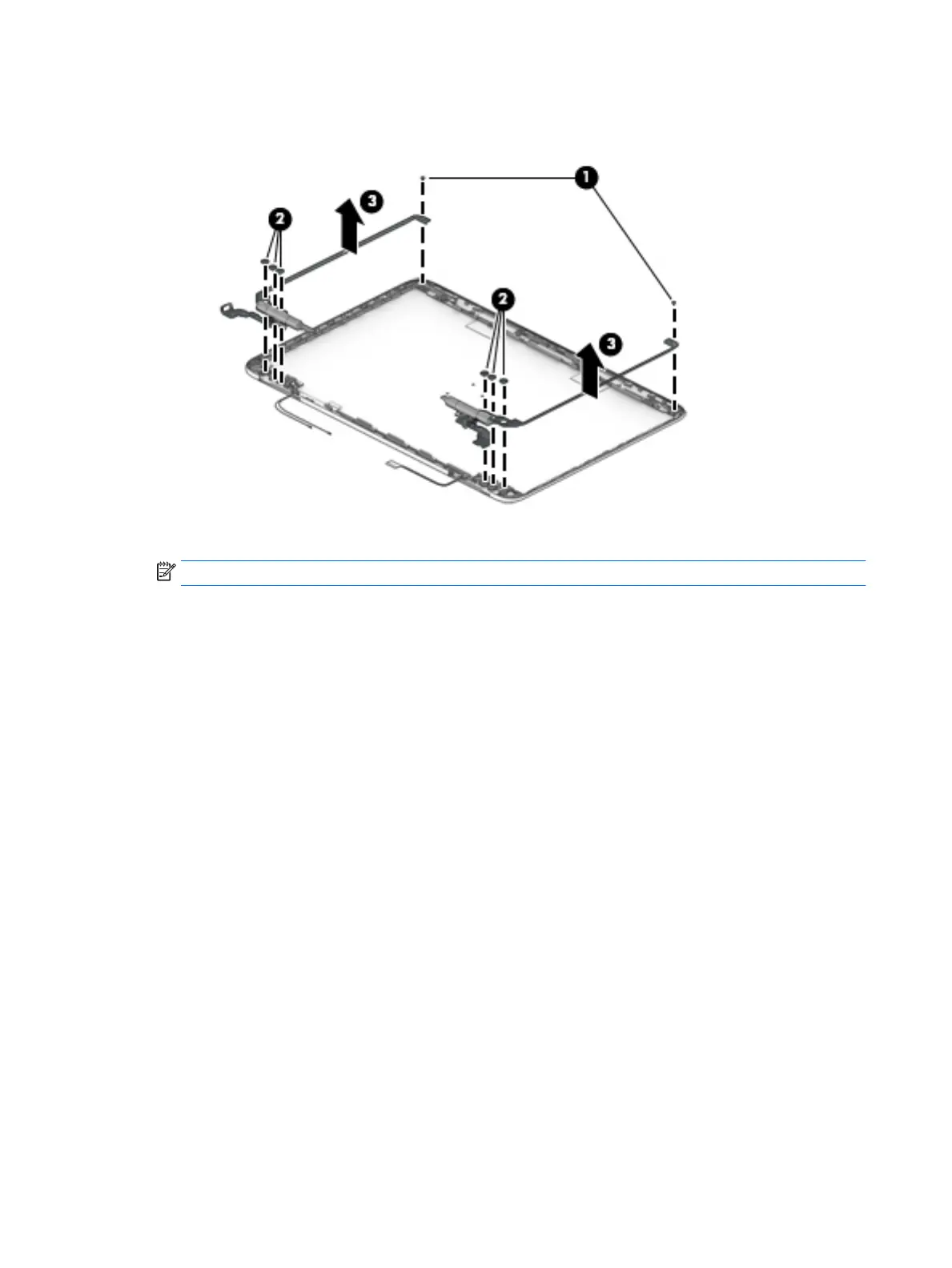

c. Detach the antenna transceivers (1) from the display back cover. (The antenna transceivers are
attached to the display back cover with double-sided adhesive.)
d. Release the antenna cables from the routing clips (2) and channels built into the top, left, and
bottom edges of the display back cover.
48 Chapter 5 Removal and replacement procedures
