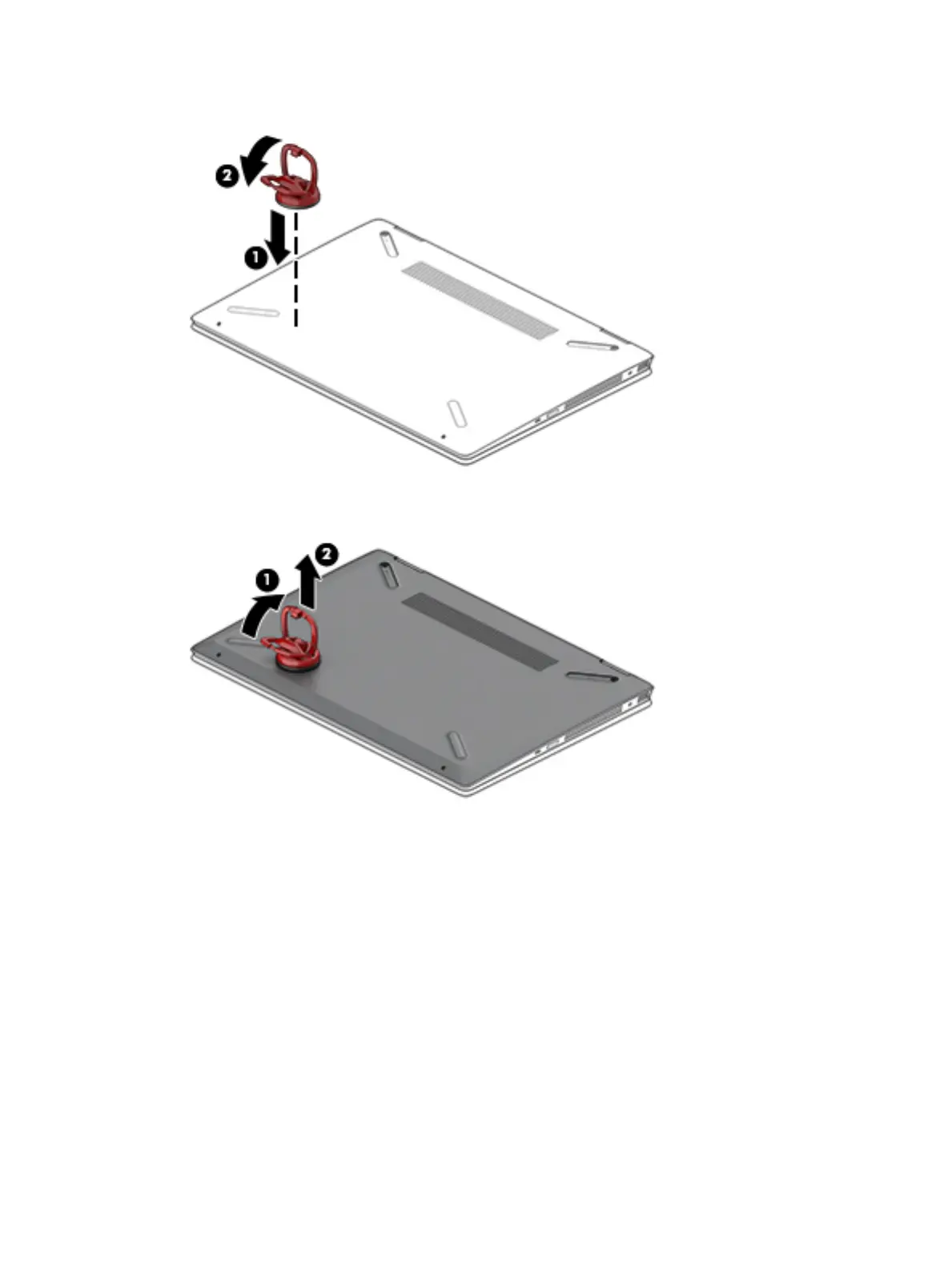

3. Place a suction cup on the bottom cover (1), and then pull the lever to secure the cup (2).
4. Use the suction cup handle to pull the bottom cover up to disengage it from the computer (1), and then
remove the bottom cover from the computer (2).
To install the bottom cover:
1. With the computer upside down, place the front of the cover on the top of the computer (1), and then
rotate the cover into place (2).
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
