3. Remove the Torx screw that secures the access panel to the computer.

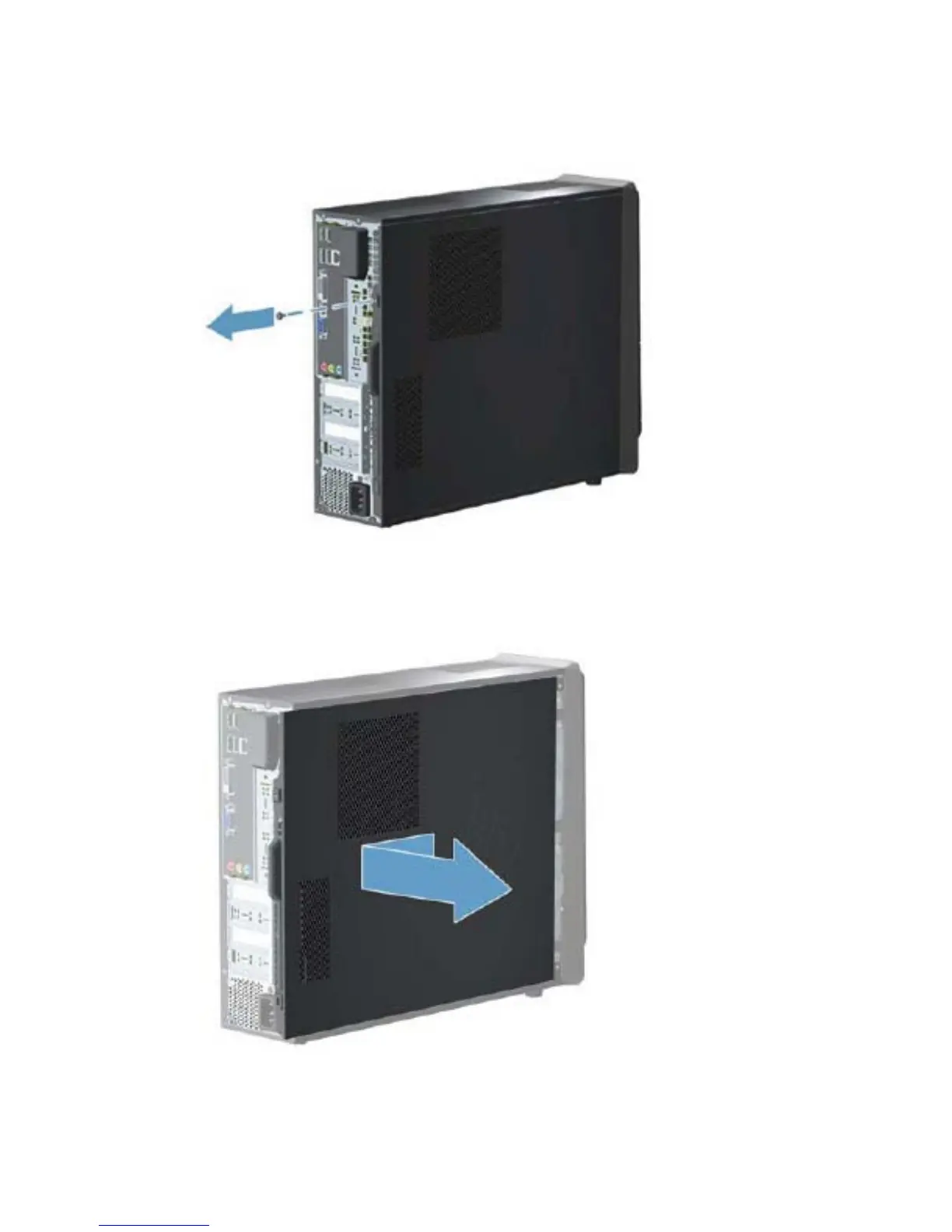

Figure 8-1 Removing the access panel screw
4. Slide the access panel toward the back of the computer, and then pull it away from the
computer.
Figure 8-2 Removing the access panel
To install the access panel, reverse the removal procedure.
Access Panel 91
