9. Remove the four guide screws from the hard drive for use in the replacement hard drive.

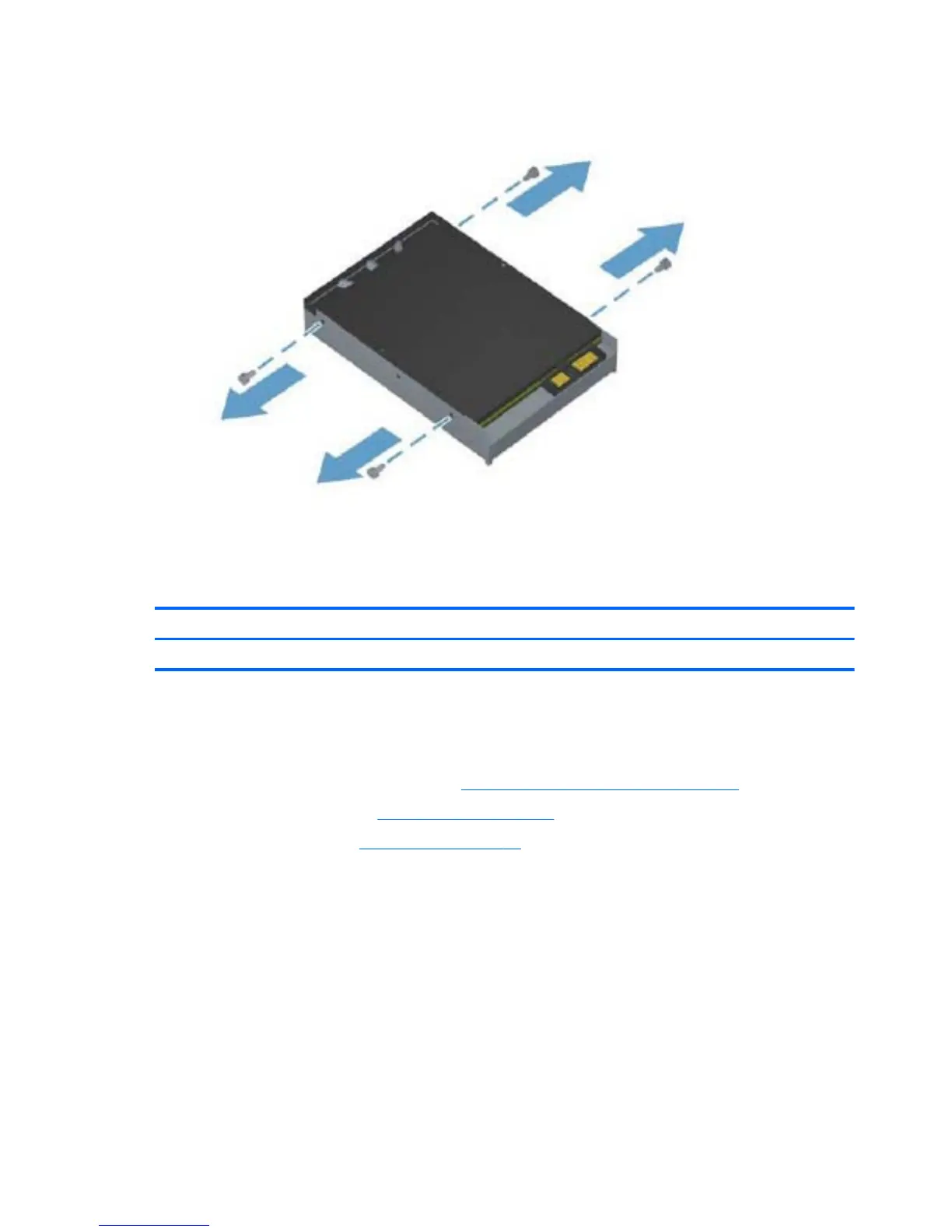

Figure 8-22 Removing the hard drive guide screws
To replace the hard drive, reverse the removal procedures.
Power Switch
Description Spare part number
Power switch/LED assembly 656984-001
The power switch is attached to the front of the chassis using tabs (no screws). Its cable routes
through metal tabs in the chassis floor. The power switch cable connects to the front USB assembly
cable.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 90).
2. Remove the access panel (
Access Panel on page 90).
3. Remove the front bezel (
Front Bezel on page 92).
4. Rotate the drive cage to its upright position.
110 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
