5. From the inside of the computer, remove the power switch cable from the tabs on the computer
floor.

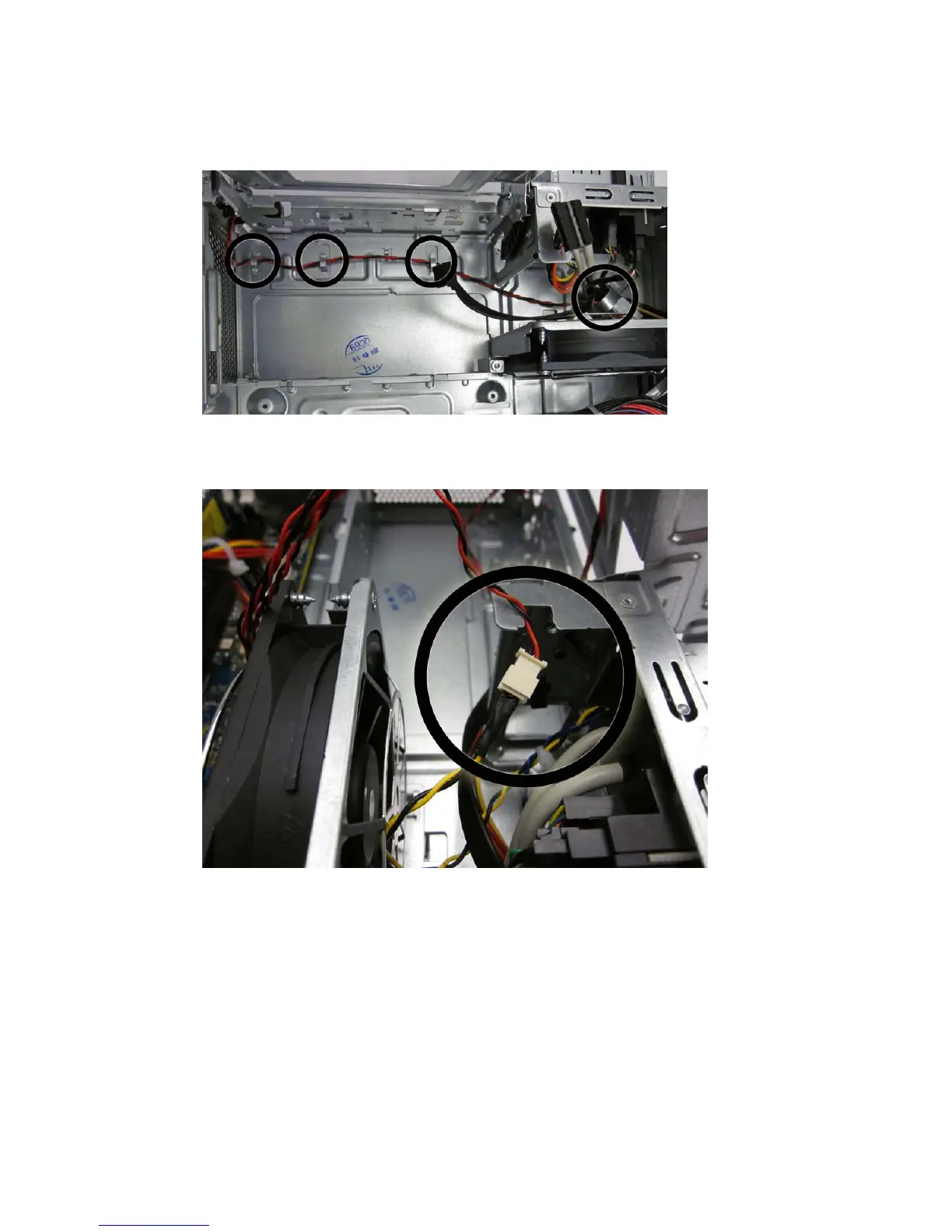

Figure 8-23 Removing the power switch cable
6. Disconnect the power switch cable from the front USB assembly cable.
Figure 8-24 Disconnecting the power switch cable
7. From the outside, front of the computer, press the tab on the right side of the power switch (1) to
disengage it from the chassis.
Power Switch 111
