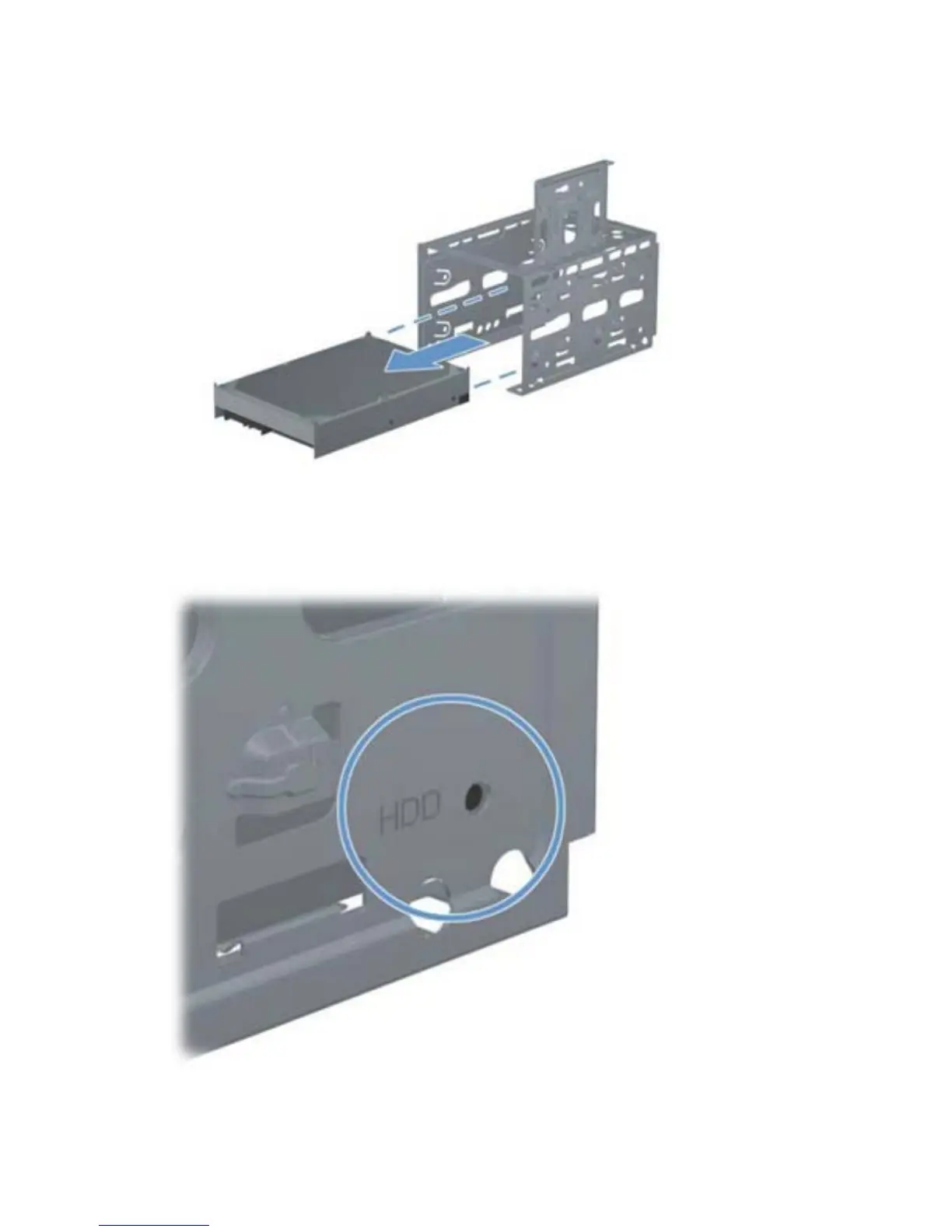

9. Slide the hard drive out of the cage.
Figure 7-28 Disconnecting the hard drive cables
To install a hard drive, reverse the removal procedures.
When installing a hard drive, align the screw holes on the hard disk drive with the screw holes on the
cage.
Figure 7-29 Disconnecting the hard drive cables
When installing a hard drive cage, set the hard drive cage down into the bay, aligning the tabs on the
bottom of the cage with the tabs on the chassis.
Drives 71
