HP Pro 7 Series User Manual

15

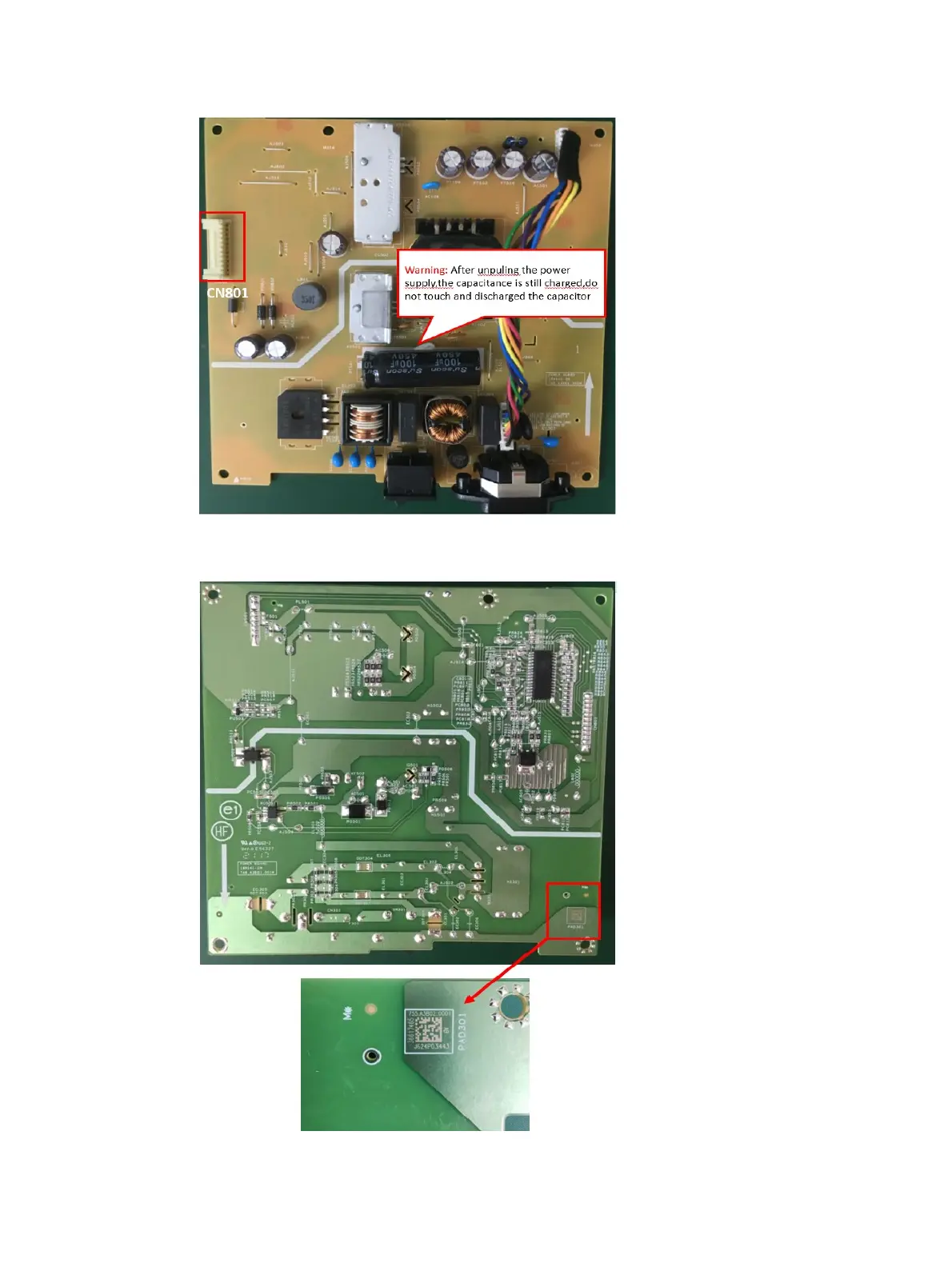

1) The HP Series 7 Pro 724pn power board connector position is as follows:
CN801 Wistron P/N: 020.60171.0112
2) Locate the part number location on the board.
3) Pin solder with soldering iron and absorber.

HP Pro 7 Series Specifications

General

Backlight Type	LED
Contrast Ratio	1000:1
Resolution	1920 x 1080
Aspect Ratio	16:9
Brightness	250 cd/m²
VESA Mount	100 mm x 100 mm
Color Support	16.7 million
Ports	VGA
Response Time	5ms GtG (with overdrive)
