HDMI connector HDMI1

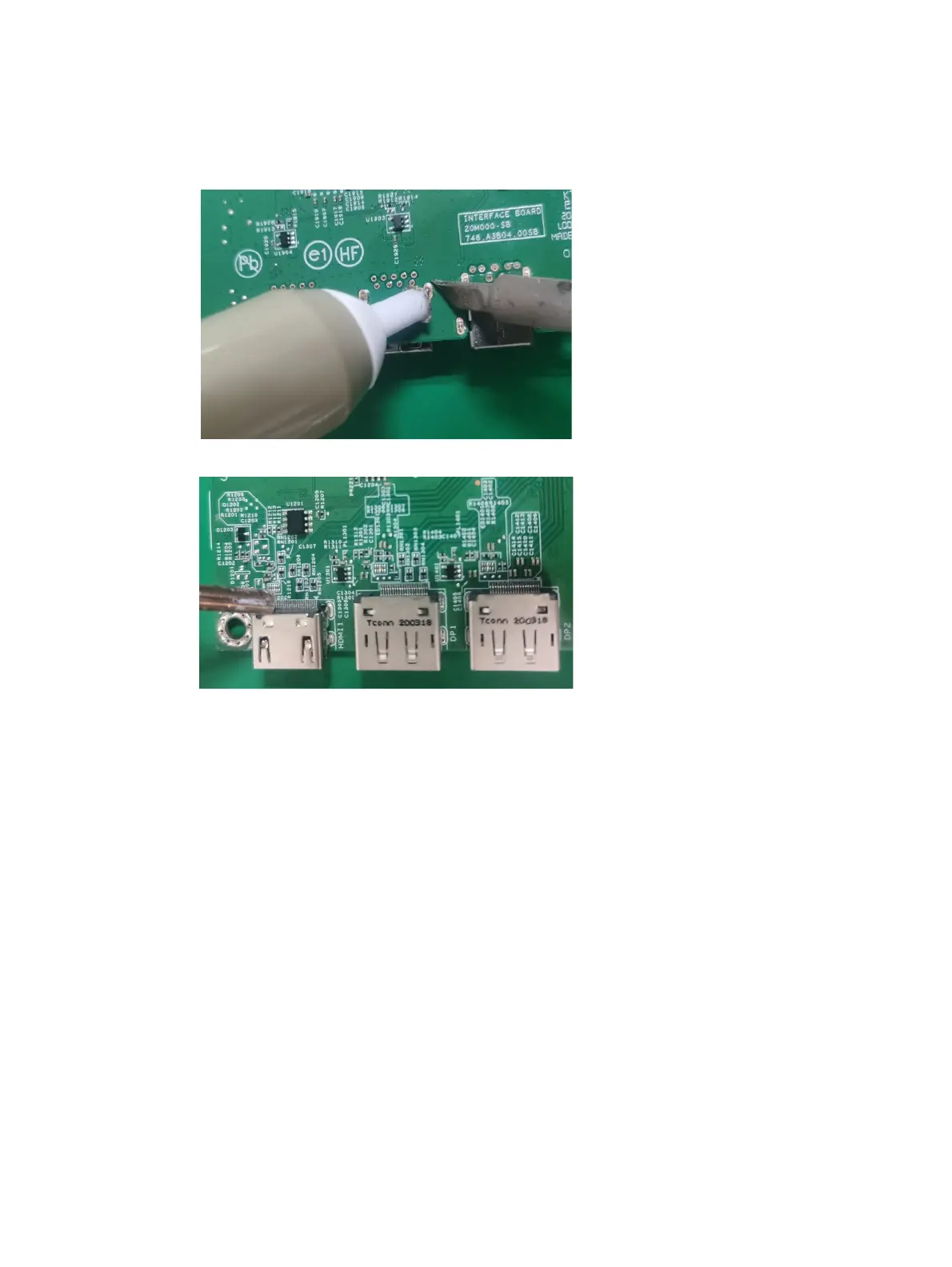

Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the HDMI connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DP connector DP1 DP2
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.

HP Pro 7 Series Specifications

General

Backlight Type	LED
Contrast Ratio	1000:1
Resolution	1920 x 1080
Aspect Ratio	16:9
Brightness	250 cd/m²
VESA Mount	100 mm x 100 mm
Color Support	16.7 million
Ports	VGA
Response Time	5ms GtG (with overdrive)
