HP Pro 7 Series User Manual

14

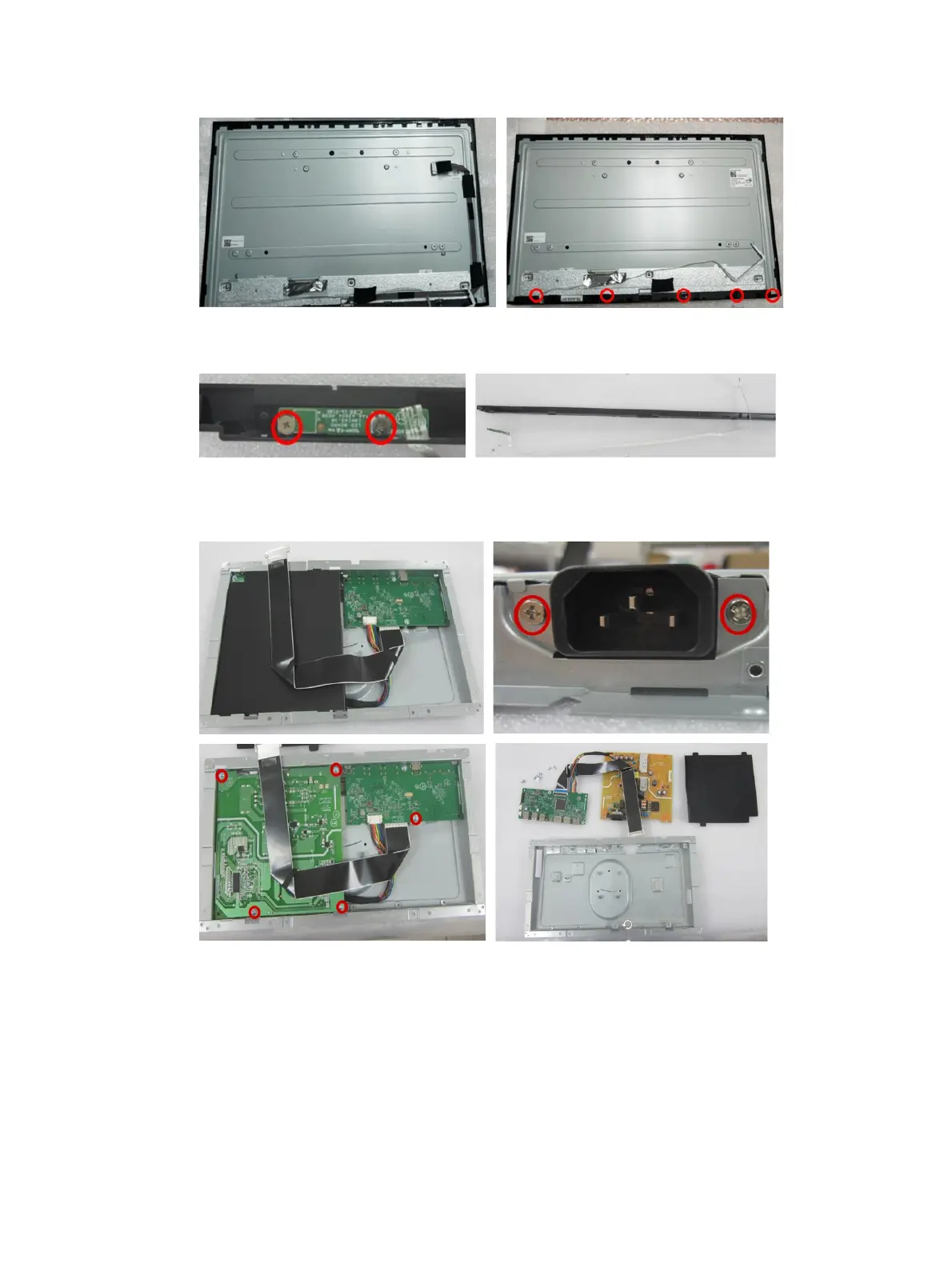

7) Remove Bottom Bezel Assembly: remove the cable and five screws from the bracket
8) Disassemble Bottom Bezel Assembly: remove the two screws, then remove the power key board.
9) Disassemble Bracket Assembly: remove black Mylar, then release the two AC screws from bracket, Release
the five screws for releasing the power board and interface board.
Power board
The power board part number is 755.A3A02.A001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Remove the power board:

HP Pro 7 Series Specifications

General

Backlight Type	LED
Contrast Ratio	1000:1
Resolution	1920 x 1080
Aspect Ratio	16:9
Brightness	250 cd/m²
VESA Mount	100 mm x 100 mm
Color Support	16.7 million
Ports	VGA
Response Time	5ms GtG (with overdrive)
