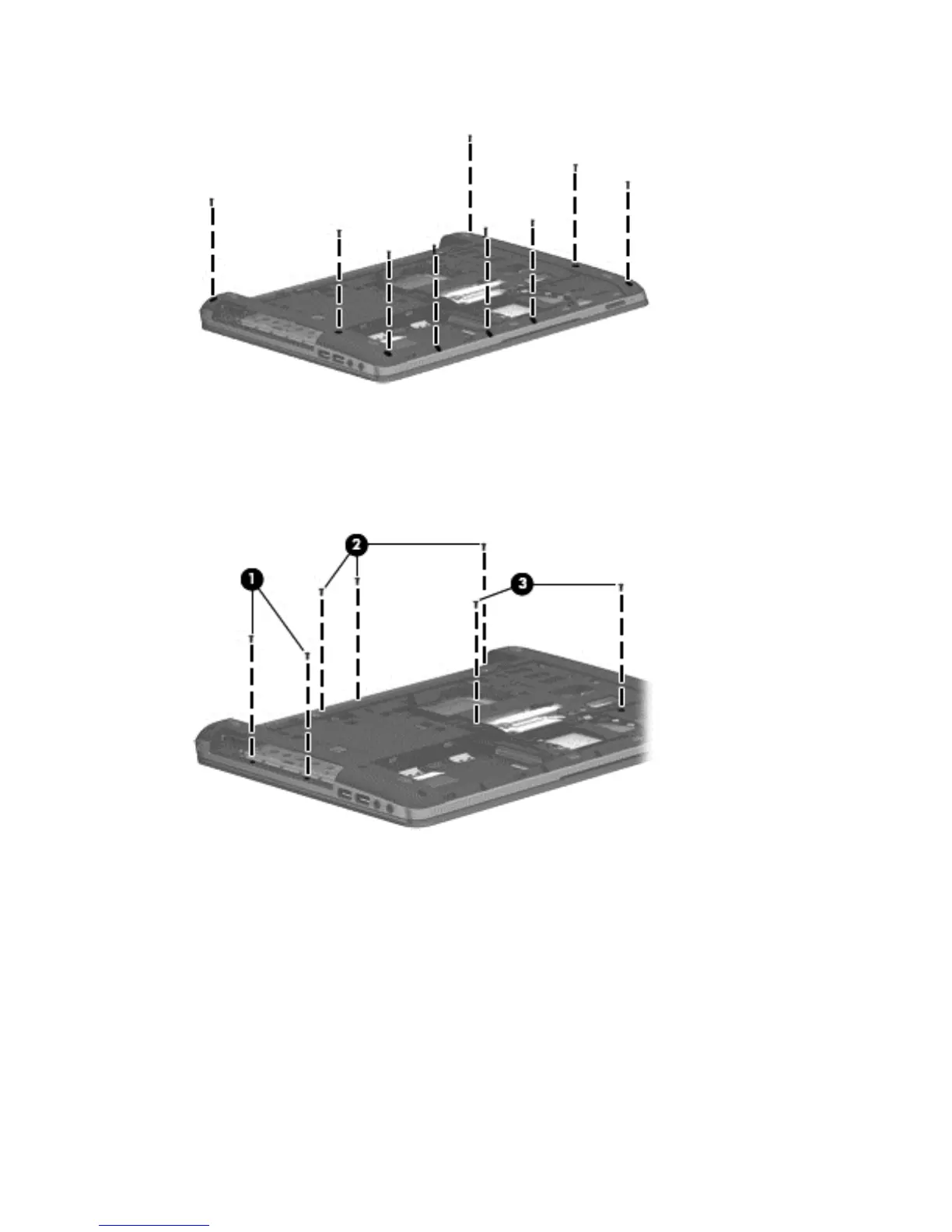

3. Remove 9 Torx T8M2.5×6.0 screws from the bottom of the computer.
4. Remove the following screws:
(1) 2 Phillips PM2.0×3.0 screws from the optical drive bay
(2) 3 Phillips PM2.0×3.0 screws from the battery bay
(3) 2 remaining Torx T8M2.5×6.0 screws from the bottom of the computer
5. Position the computer upright and open it as far as possible.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
