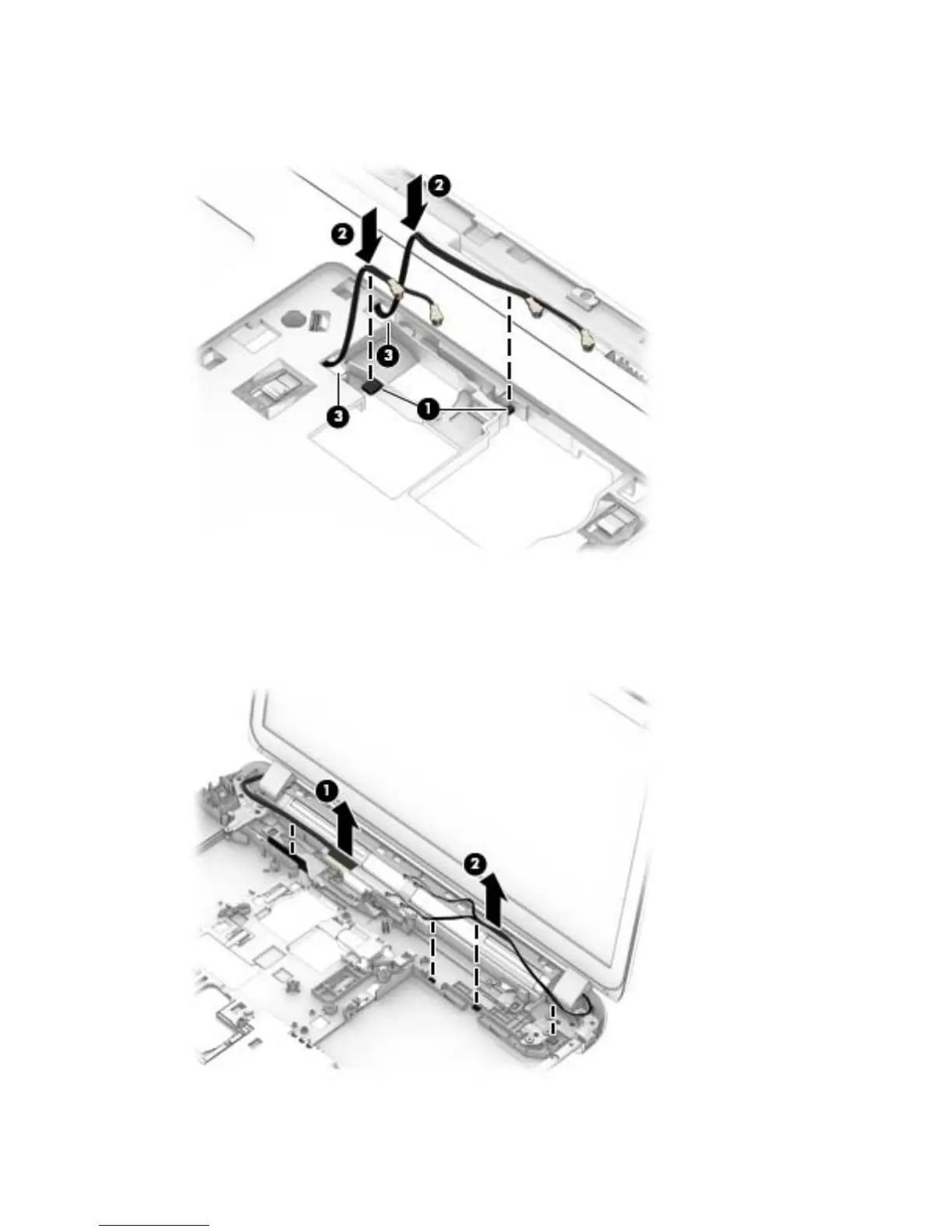

2. Pull the antenna cables through from the bottom of the computer. Position the computer upside down,
and then remove the cables from the clips near the wireless modules (1), pulling the cables (2) through
the holes (3) in the computer.
3. Position the computer upright and open.
4. Disconnect the display cable from the system board (1).
5. Remove the WLAN antennas and WWAN antennas (if equipped) from the routing path along the base of
the computer (2).
6. Place the computer upright and open as far as possible.
90 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
