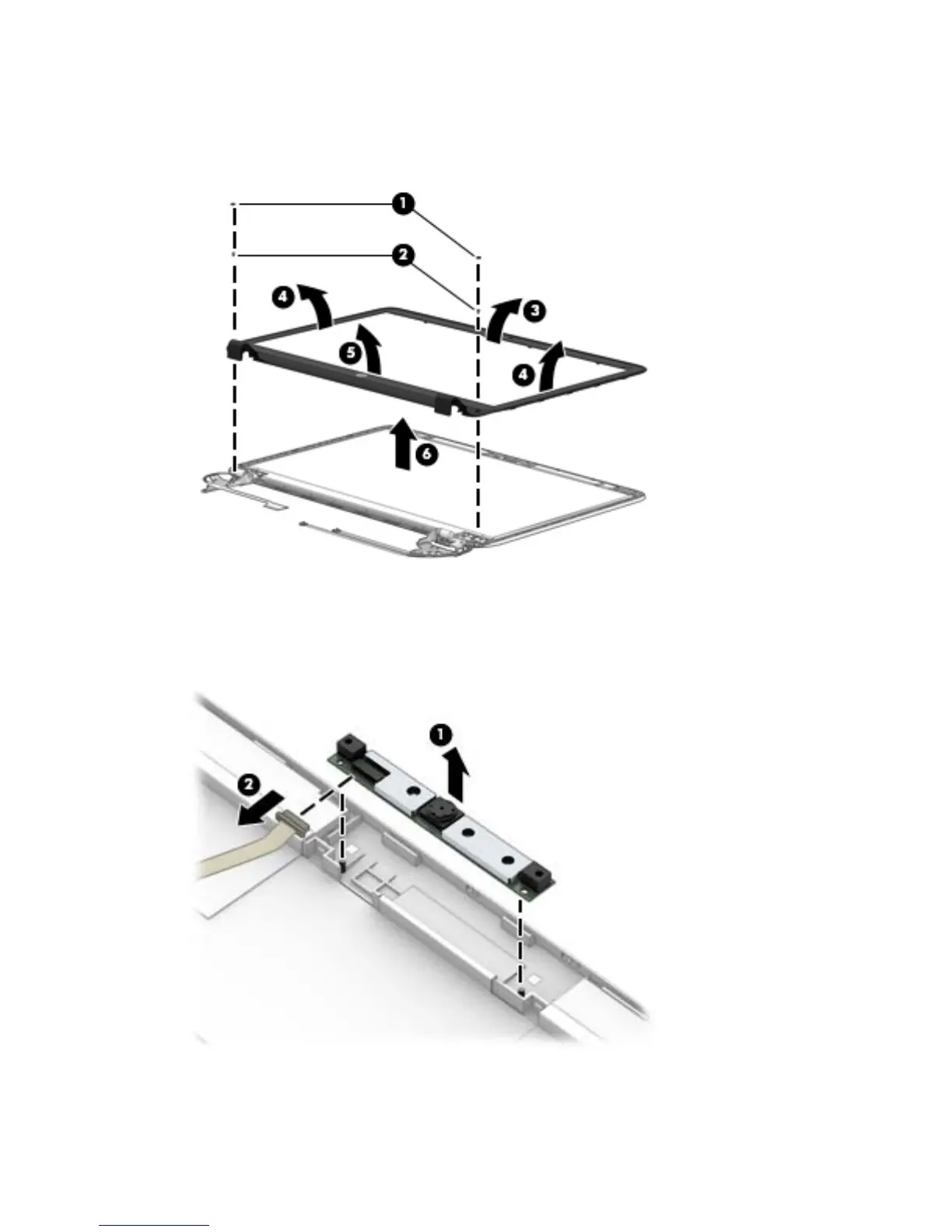

11. Remove the display bezel (6).
The display bezel is available using spare part number 767429-001 for models with a webcam and
767430-001 for models without a webcam. Display bezel mylar screw covers are available in the
Rubber Kit, spare part number 767450-001.
12. If it is necessary to replace the webcam or microphone module, gently pull the module away from the
double-sided tape on the display enclosure (1), and then disconnect the cable from the module (2).
The webcam module is available using spare part number 767457-001. The microphone module is
available using spare part number 773563-001.
92 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
