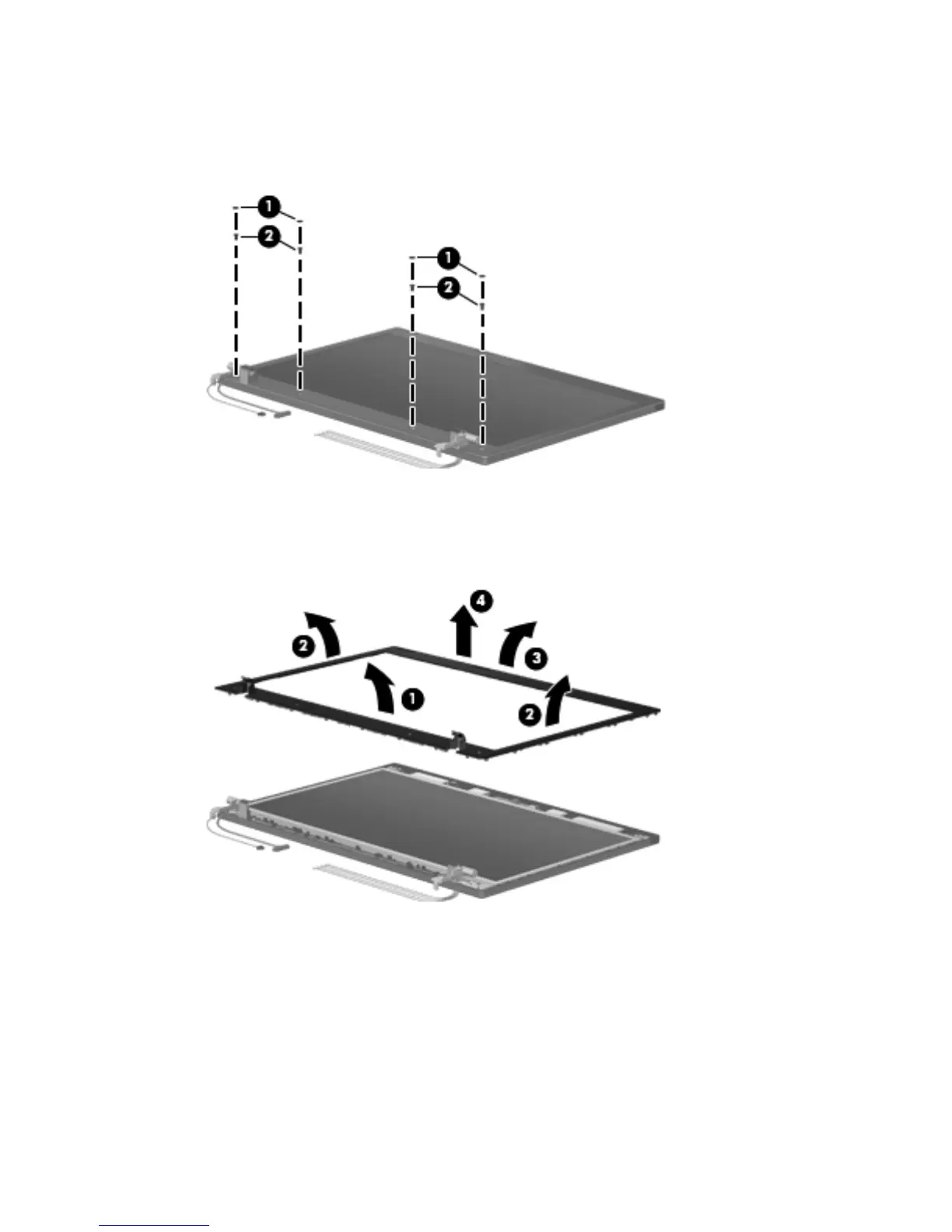

5. If it is necessary to replace the display bezel, display enclosure, or display hinges, remove the
two mylar screw covers (1) and the 2 Torx M2.5×6.0 screws (2) that secure the display bezel to
the display assembly. The screw covers are available in the Rubber Kit, spare part number
598678-001.
6. Flex the bottom bezel (1) around the hinge areas on the inside of the display enclosure and work
around the periphery of the bezel (2) and (3).
7. Lift the bezel (4) until it disengages completely.
Component replacement procedures 77
