M.2 solid-state drive
Description Spare part number
256-GB, TLC 827583-001
128-GB, TLC 827053-001
Before removing the solid-state drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 31).
5. Remove the small service door (see Service doors on page 32).
Remove the solid-state drive:

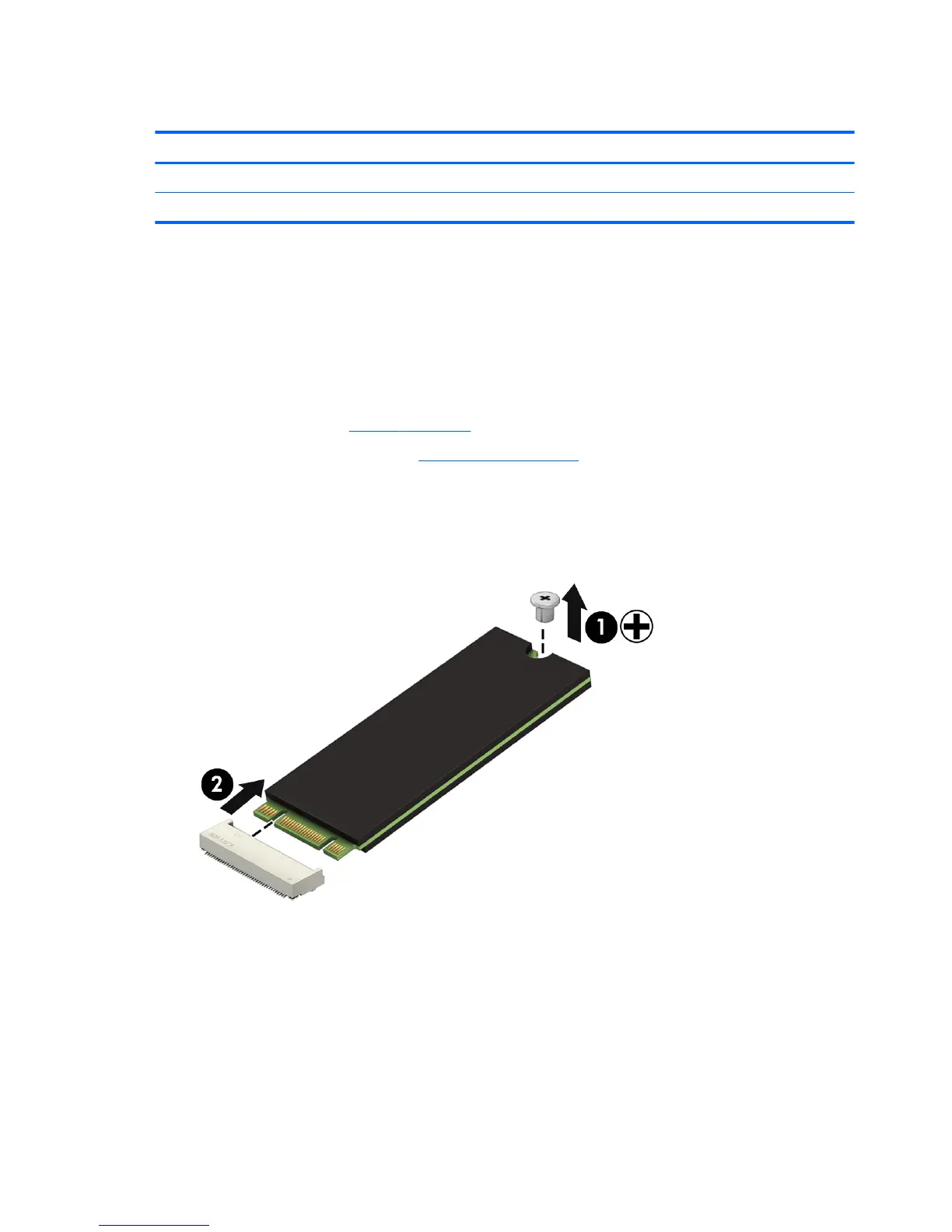

1. Remove the Phillips PM2.0×4.0 screw (1) that secures the solid-state drive to the computer. (The edge
of the module opposite the slot rises away from the computer.)
2. Remove the solid-state drive (2) by pulling the module away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
