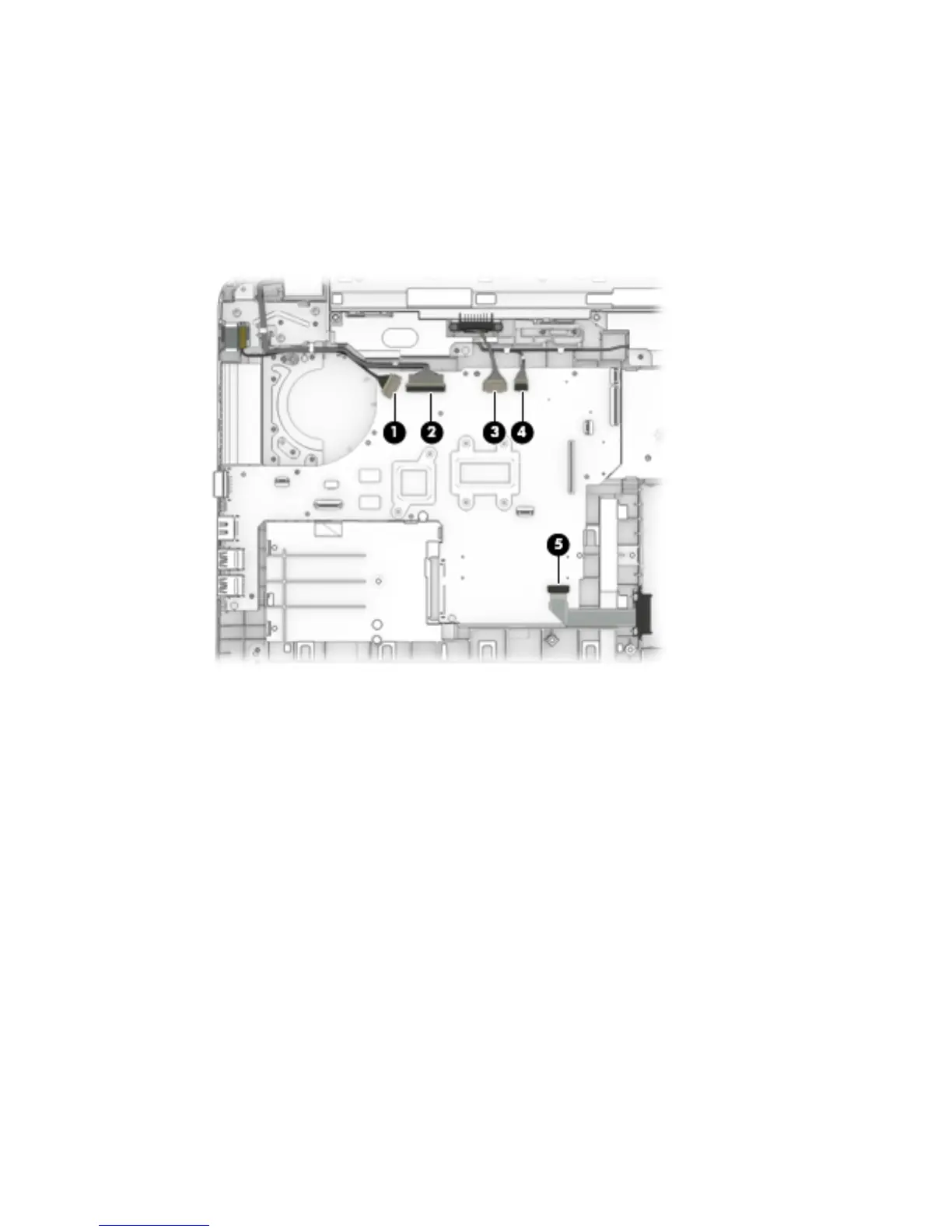

2. Disconnect the following cables from the system board:
(1) Power connector cable
(2) Display cable
(3) Battery connector cable
(4) Speaker cable
(5) Hard drive connector cable
3. Remove the 2 Phillips PM2.5×5.0 screws (1) that secure the system board to the computer.
Component replacement procedures 67
