ProCurve 5412zl/8212zl Configurations using the Power
Supply Shelf
The Power Supply Shelf can be connected to the 5412zl/8212zl to supply extra
or redundant PoE power to the PoE modules installed in the 5412zl/8212zl.
Either EPS port on the Power Supply Shelf can be connected to either EPS
port on the switch. To avoid confusion, it is recommended that EPS 1 of the
Power Supply Shelf be connected to EPS 1 of the switch.

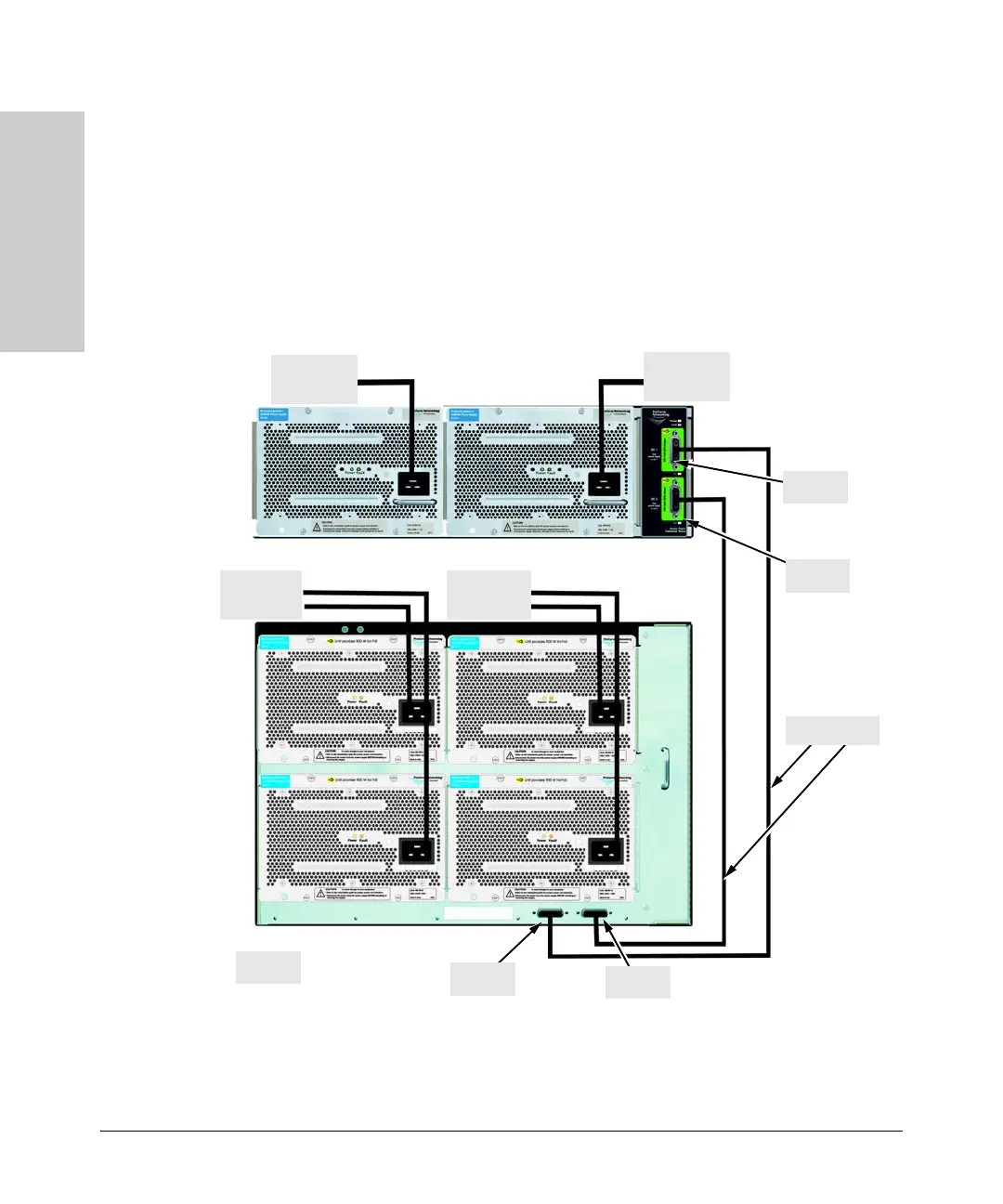

Figure 10-21.Connecting the EPS to one 5412zl switch
To Power
Source
EPS Cables
To Power
Source
5412zl
To Power
Source
To P o we r
Source
EPS 2
EPS 1
EPS 2
EPS 1
