Static Virtual LANs (VLANs)
Special VLAN Types
Figure 1-33. Example of Potential Security Breaches

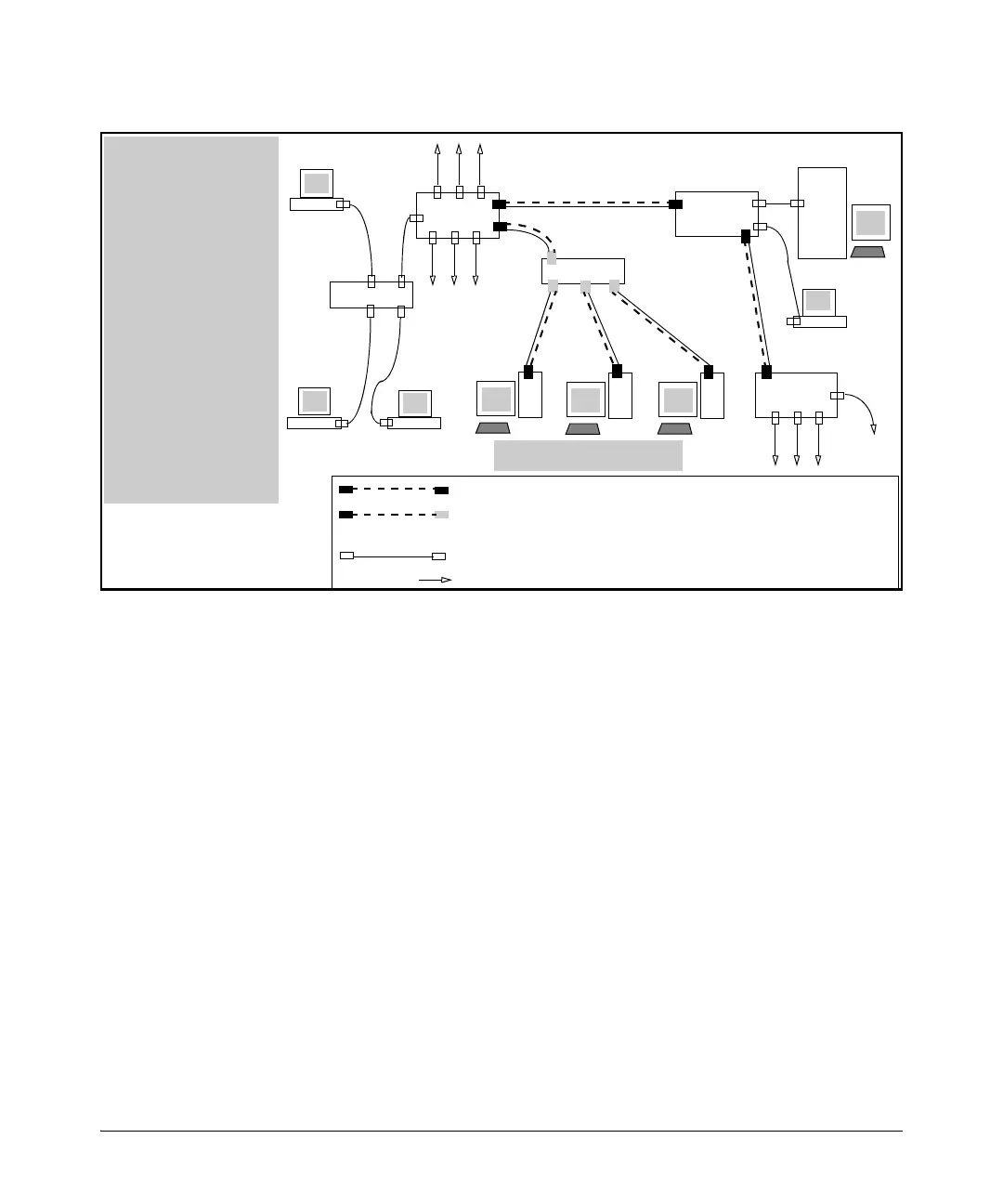

In figure 1-34, Workstation 1 has management access to all three switches
through the Management VLAN, while the PCs do not. This is because config-
uring a switch to recognize a Management VLAN automatically excludes
attempts to send management traffic from any other VLAN.
Links with Ports Belonging to the Management VLAN and other VLANs
Links Between Ports on a Hub and Ports belonging to the Management
VLAN
Links Not Belonging to the Management VLAN
Links to Other Devices
Hub Y
Switch A
Hub X
Switch B
Server
Switch C
Management Workstations
• Switches “A”, “B”, and
“C” are connected by
ports belonging to the
management VLAN.
• Hub “X” is connected
to a switch port that
belongs to the
management VLAN. As
a result, the devices
connected to Hub X are
included in the
management VLAN.
• Other devices
connected to the
switches through ports
that are not in the
management VLAN are
excluded from
management traffic.

HP ProCurve 5406zl Specifications

General

Product Name	HP ProCurve 5406zl
Category	Switch
Layer	Layer 3
Operating Temperature	32°F to 131°F (0°C to 55°C)
Operating Humidity	15% to 95% non-condensing
Management	SNMP, CLI
Power Supply	Redundant power supplies (optional)
Memory	128 MB flash, 512 MB SDRAM
