HP ProDesk 400 G6 SFF

EL-MF877-00 Page 14
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01

13

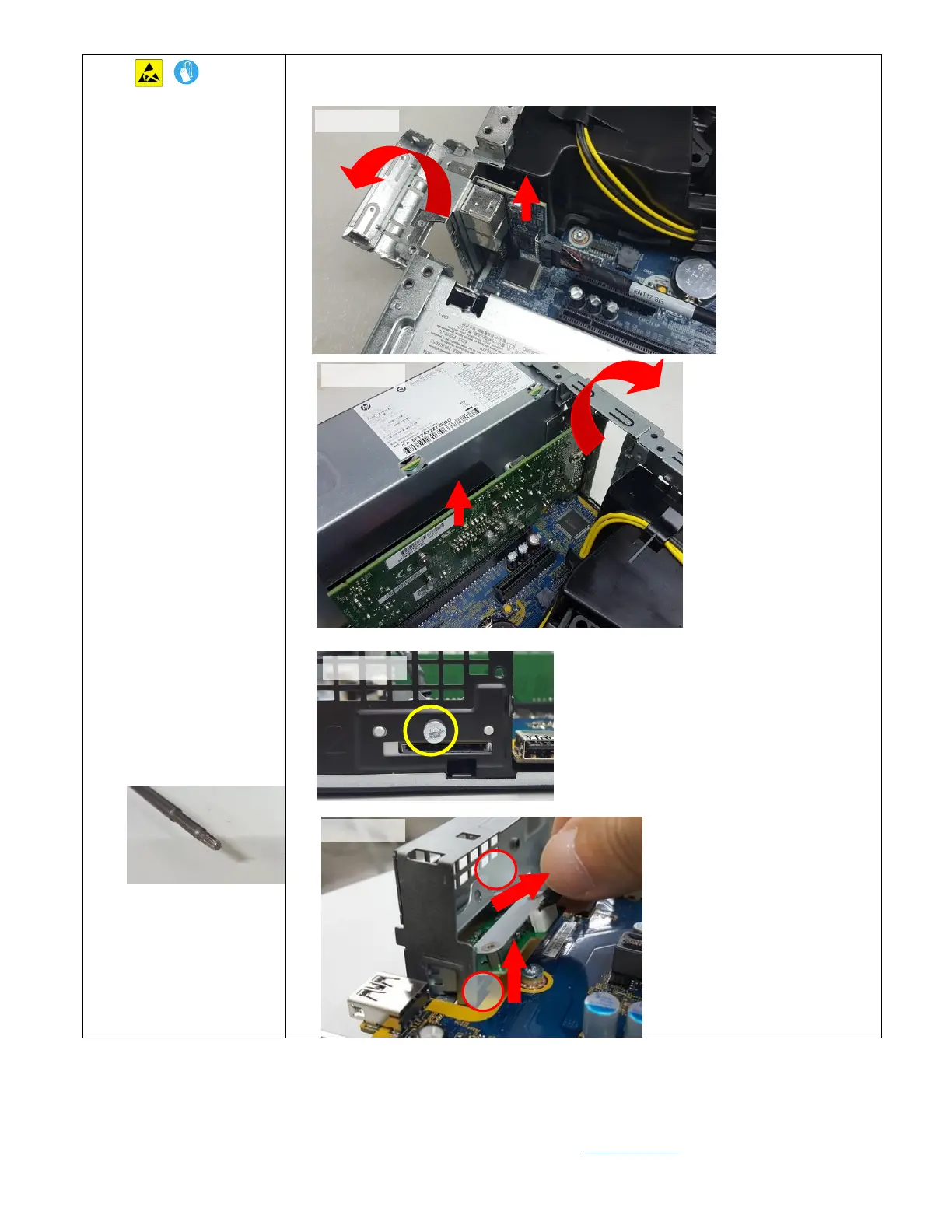

Open slot lock cover
then pull up all
PCIEXP cards as
shown.
See Photo 28, 29
14
Release one screw
then pull up card
reader as shown.
See Photo 30, 31
Screw tool:
Star screwdriver
OD 3.3mm.
Photo 28
Photo 29
Pull
Pull up
Photo 30
Photo 31
1
2
