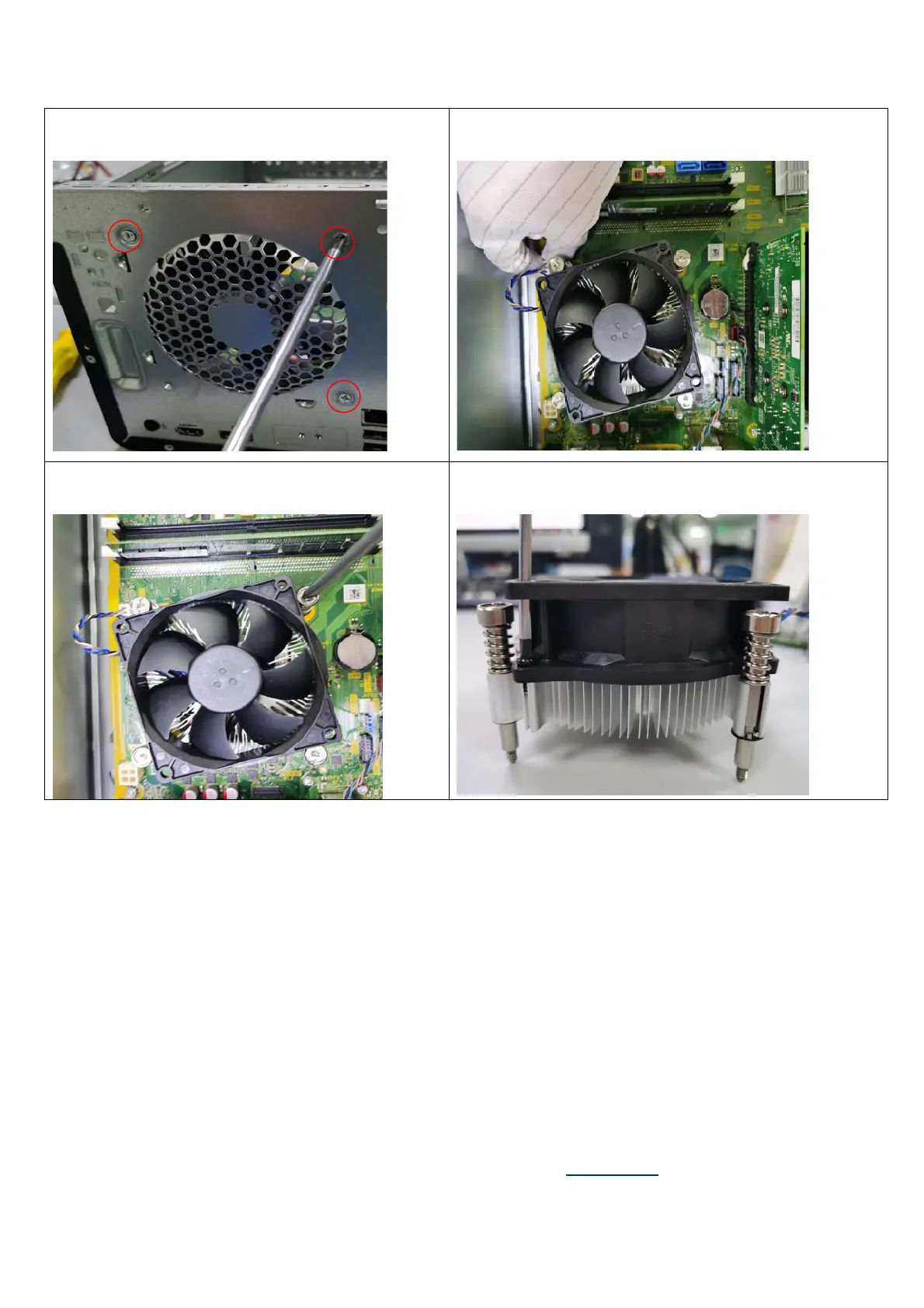

Step15 Use PH1 screwdriver to remove system fan from
chassis
Step16 Disconnect cooler fan cable from MB
Step17 Use T-15 screwdriver to loose the screws and
remove cooler
Step18 Use PH1 screwdriver to loose the screws and remove
the fan
