Drive power cable
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the computer access panel (Access panel on page 20).

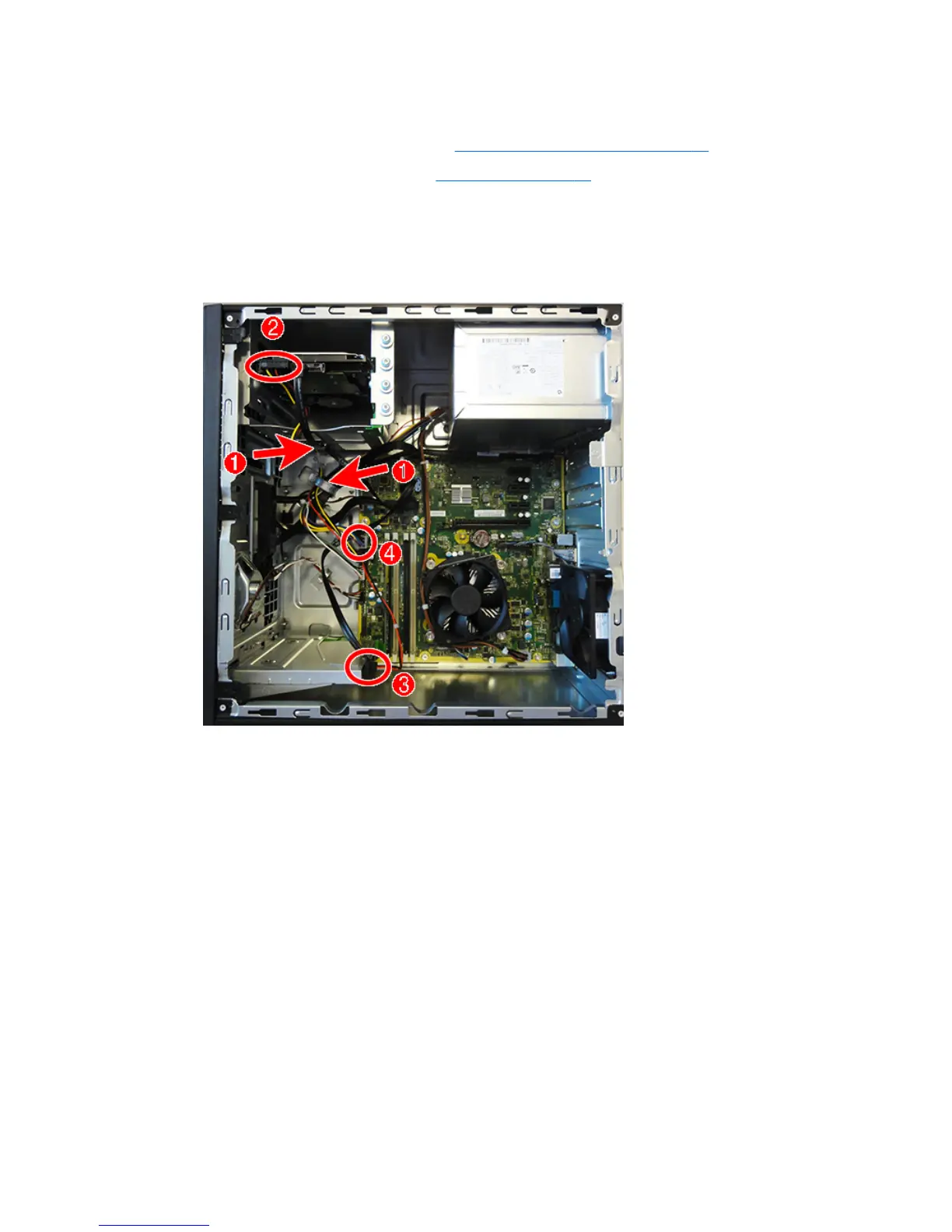

3. Remove the cable from the clips on the base pan and on the side of the hard drive cage (1).
4. Disconnect the cable from the hard drive (2) and the optical drive (3)
5. Disconnect the cable from the system board connector labeled SATAPWR0 (4), and then remove the
cable from the computer.
To reinstall the drive power cable, reverse the removal procedure.
Drive power cable 41
