Front I/O and power switch assembly
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the computer access panel (Access panel on page 20).
3. Remove the front bezel (Front bezel on page 21).

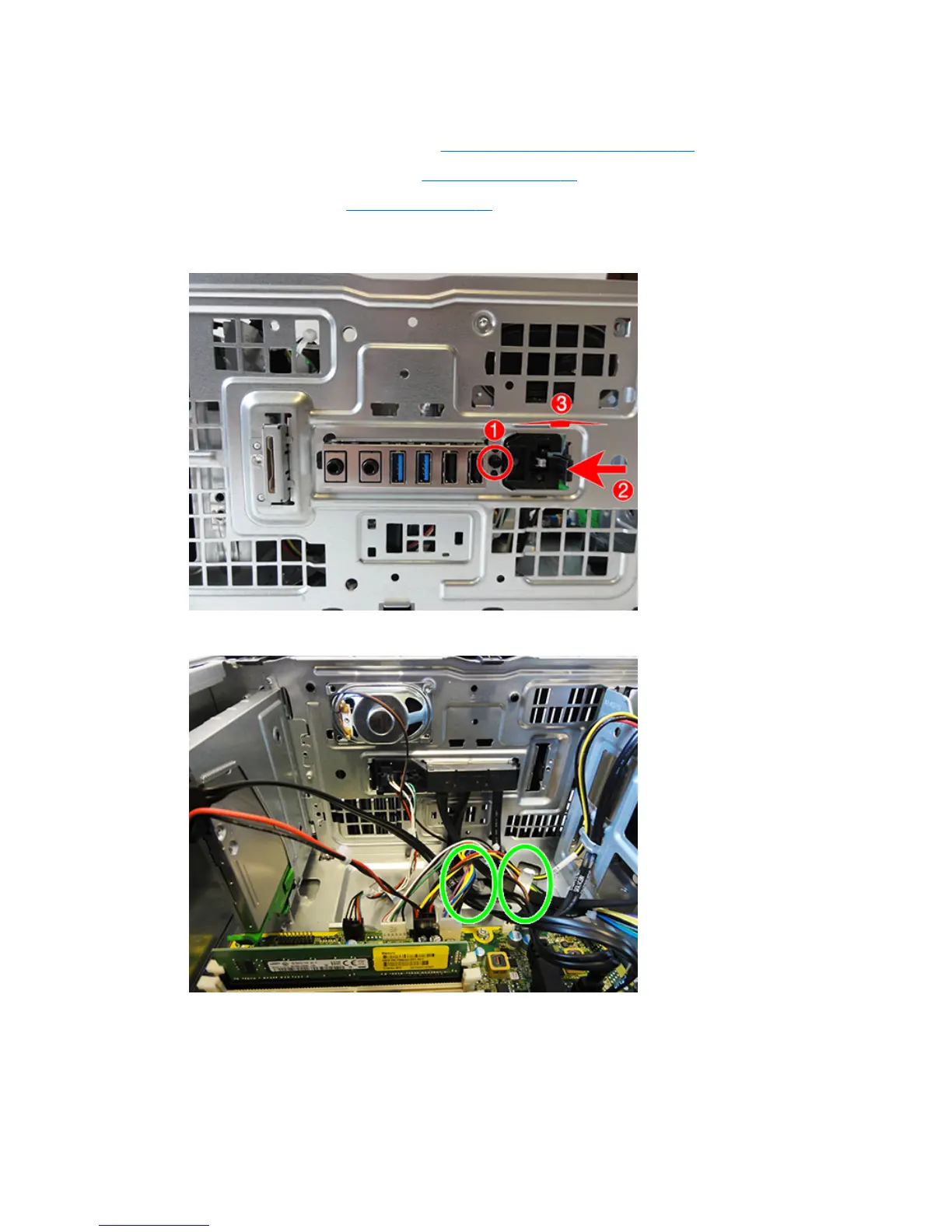

4. Remove the Torx T15 screw (1) that secures the assembly to the chassis, push the tab on the right side
of the assembly (2) to disengage it from the chassis, and push the assembly into the chassis (3).
5. Remove the cables from the clips on the base pan.
42 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
