Rotating the drive cage

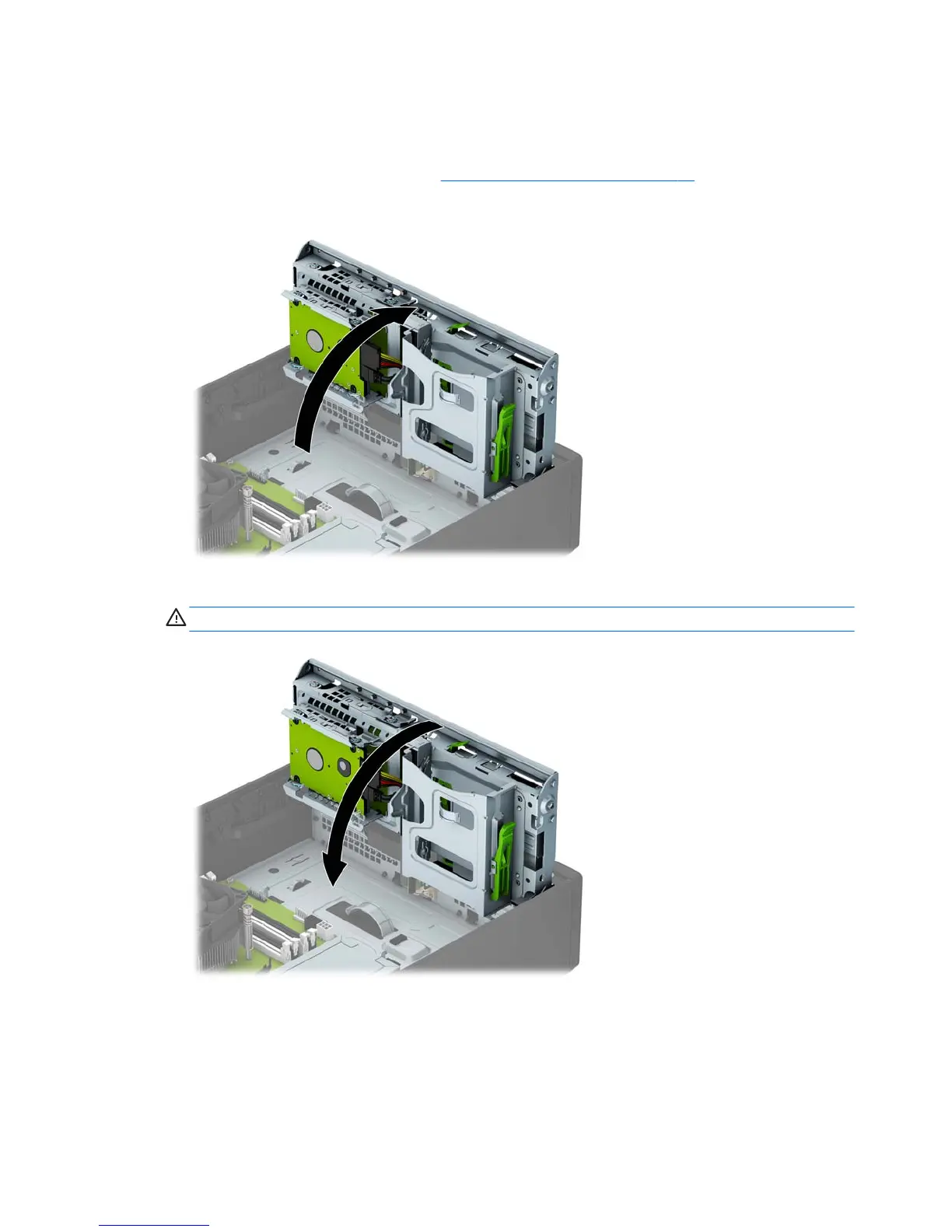

You must rotate the drive cage to the upright position to access most computer components.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. To access internal components: Rotate the drive cage upward until it is fully open.
3. To reassemble the computer: Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
32 Chapter 4 Removal and replacement procedures: Small Form Factor
