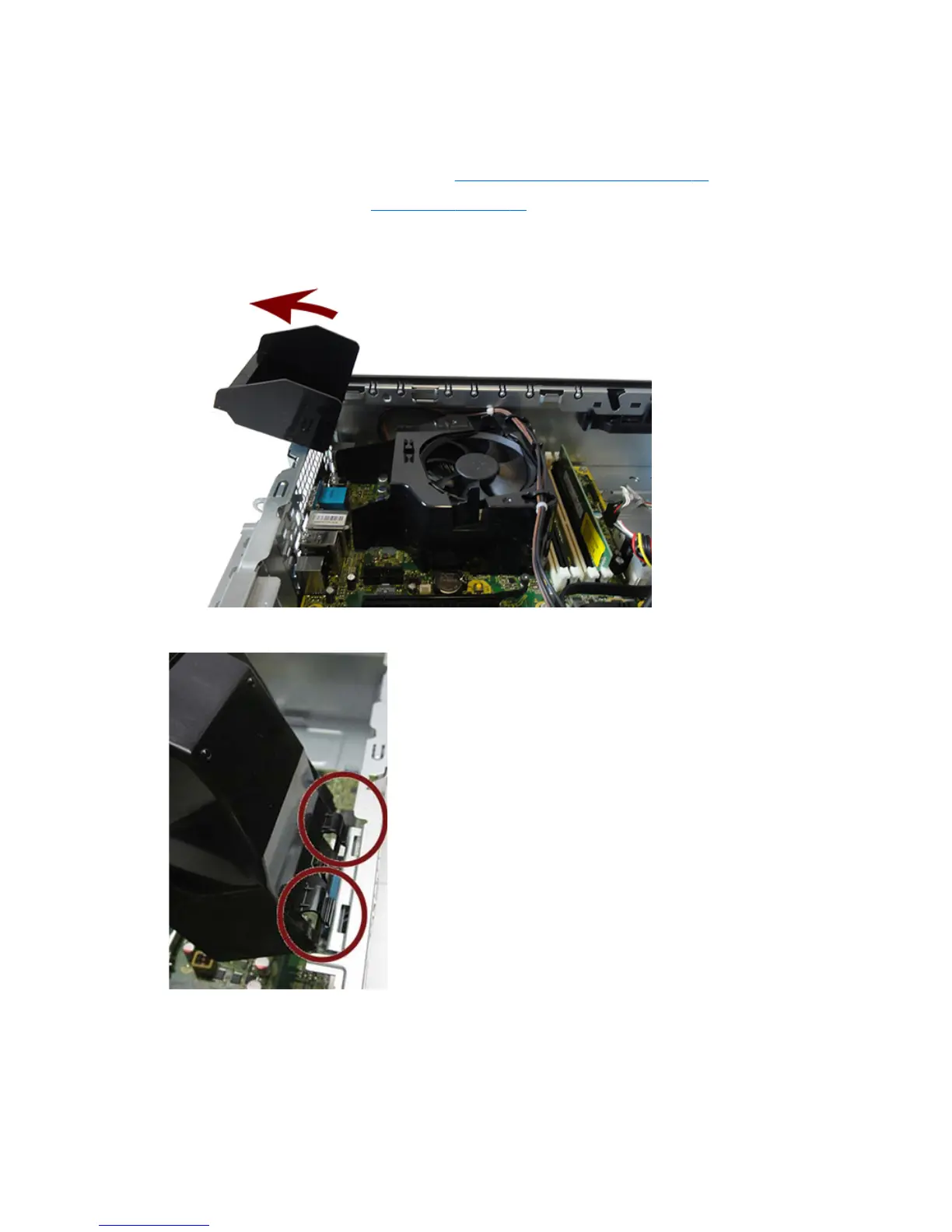

Rotating fan duct
The rotating fan duct sits between the fan sink and rear of the computer.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Rotate the fan duct upward.
4. Pull the duct away from the chassis to disengage the clips on the duct from the chassis.
To install the fan duct, insert the clips on the edge of the fan onto the metal posts on the chassis.
Rotating fan duct 49
