Speaker
The speaker is attached to the front of the chassis under the rotating drive cage.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the front bezel (Front bezel on page 21).
4. Rotate the drive cage to its upright position (Rotating the drive cage on page 32).

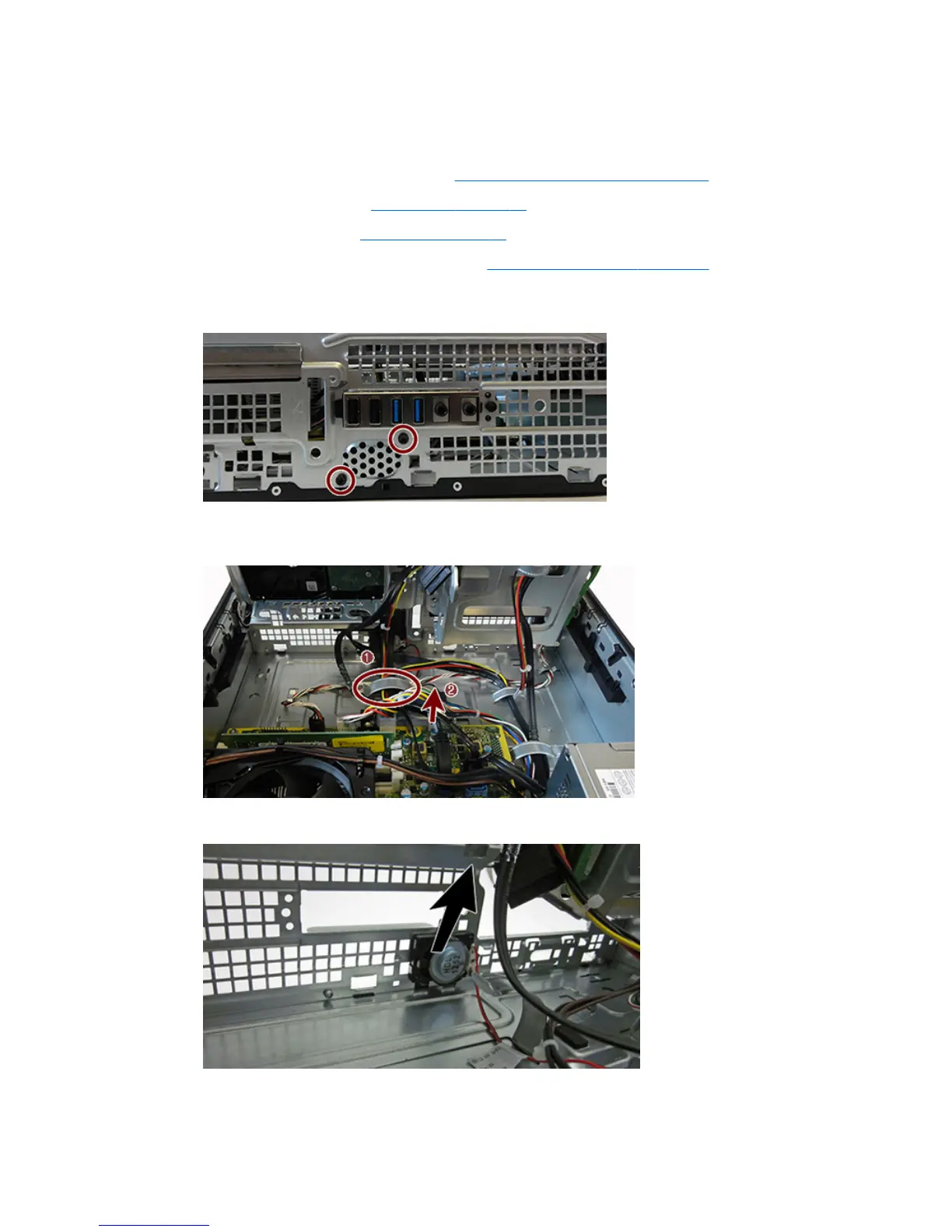

5. From the outside, front of the chassis, remove the two Torx screws that secure the speaker to the
chassis.
6. On the inside of the chassis, lift the metal clip (1) that secures the speaker cable, and then disconnect
the speaker wire from the white system board connector labeled SPKR (2).
7. Lift the speaker from the inside of the chassis to remove it.
To install the speaker, reverse the removal procedures.
Speaker 55
