EL-MF877-00 Page 7
Template Revision B
PSG instructions for this template are available at EL-MF877-01

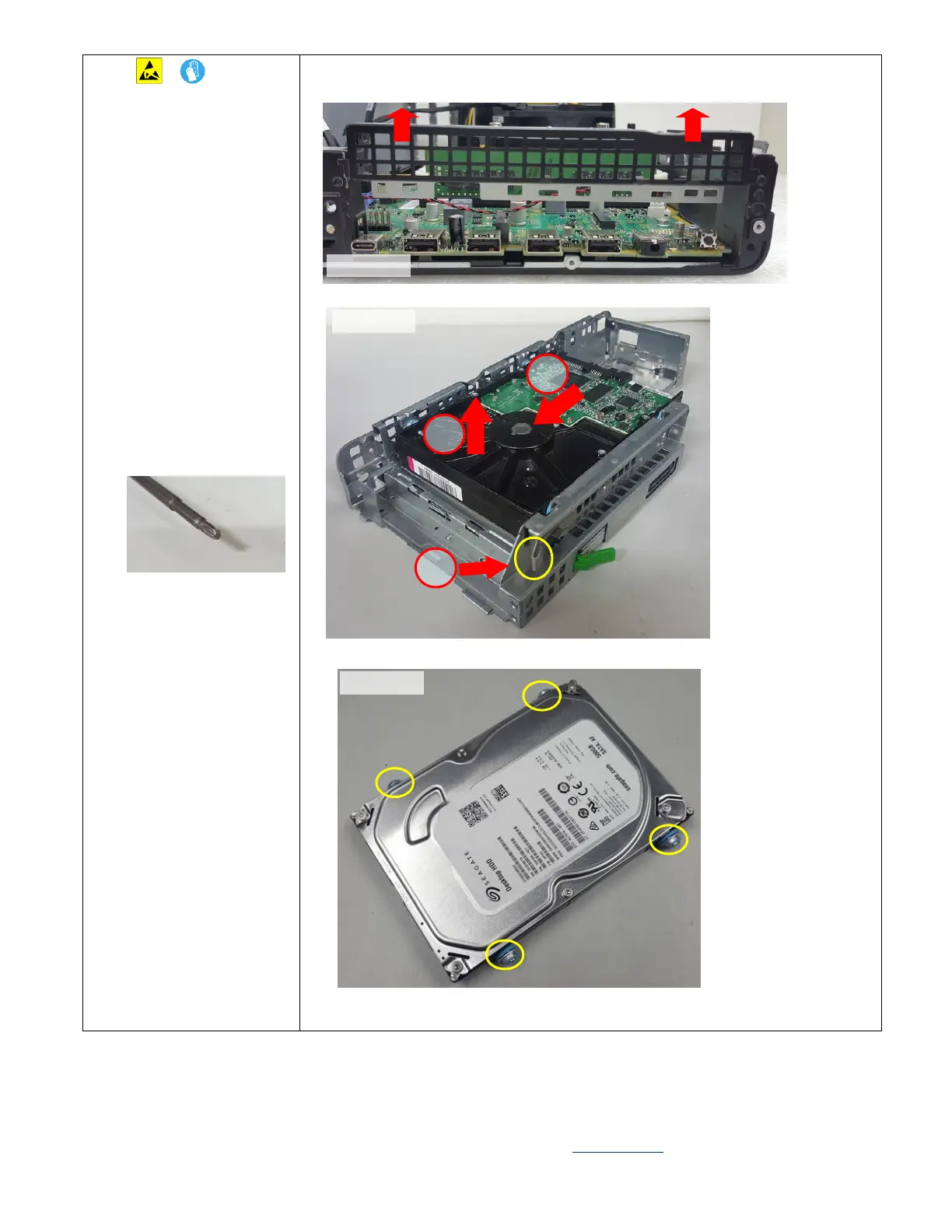

5
Pick up FIO bracket
from chassis as shown.
See Photo 11
6
Push HDD latch then
push HDD in the order
and release screws as
shown.
See Photo 12, 13
Screw tool:
Star screwdriver OD
3.3mm.
Push ODD latch then
pull ODD as shown.
See Photo 14, 15
Photo 11
Photo 12
Photo 13
Push
1
2
3
