Connector types
Local and national electrical codes specify the types of connectors that should be used when
interfacing with facility AC feeds. The location of the facility and the level, amount, and phase of the
AC power available determine the type of connector to use. PDUs are designed to distribute power at
a specific range and current. PDUs are provided with power cords of appropriate sizes and plug
types for the geographic region where they will be used. Table 1 shows profiles of the most common
connectors for different regions. Some regions may require connectors not shown in Table 1. Some
facilities may require PDU power cords without connectors for hard-wired (terminal) installations.

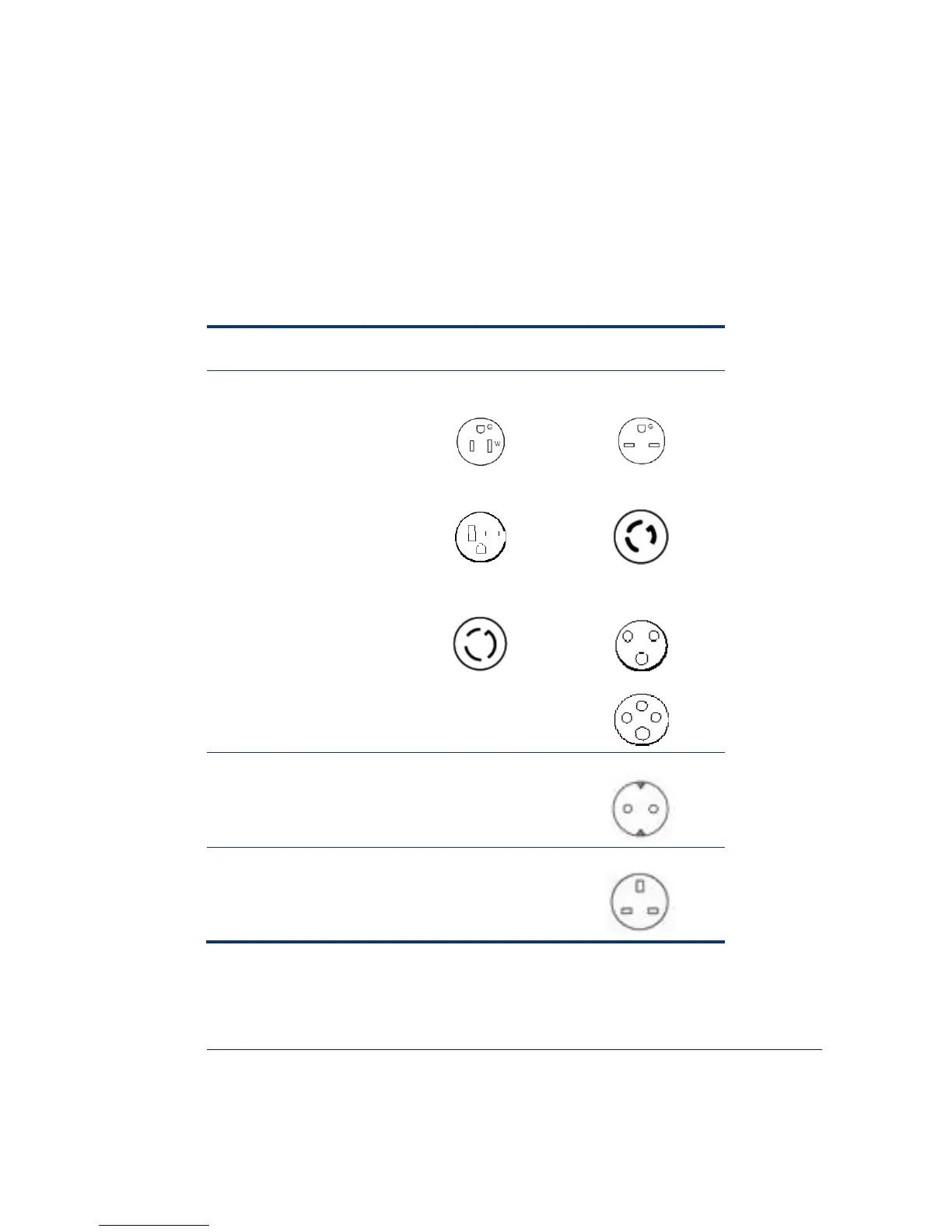

Table 1
. AC power connectors (rack-to-facility interface)
Geographic region
or country
Low-line High-line
North America & Japan
NEMA 5-15
NEMA 5-20
NEMA L5-30
NEMA 6-15
NEMA L6-20
IEC 309 2 phase [1]
IEC 309 3 phase [1]
Europe n/a
Shuko
United Kingdom n/a
BS1363
[1] Becoming more common in other regions.
For more information on AC power connector types refer to the HP technology brief “Selecting power
cords and jumper cables for use with HP ProLiant servers” at the following URL:
http://h18004.www1.hp.com/products/servers/technology/whitepapers/datacenter.html
