Rack configurations for distributing power to HP ProLiant DL servers
This section describes power distribution configurations for a high-density server system based on HP
ProLiant DL 360 G5 servers. The ProLiant DL 360 G5 is a 1U server that uses an auto-ranging power
supply and supports power redundancy when used in the 1 + 1 power supply configuration option.
These configurations use monitored PDUs and fixed cord extension bars (Figure 8).

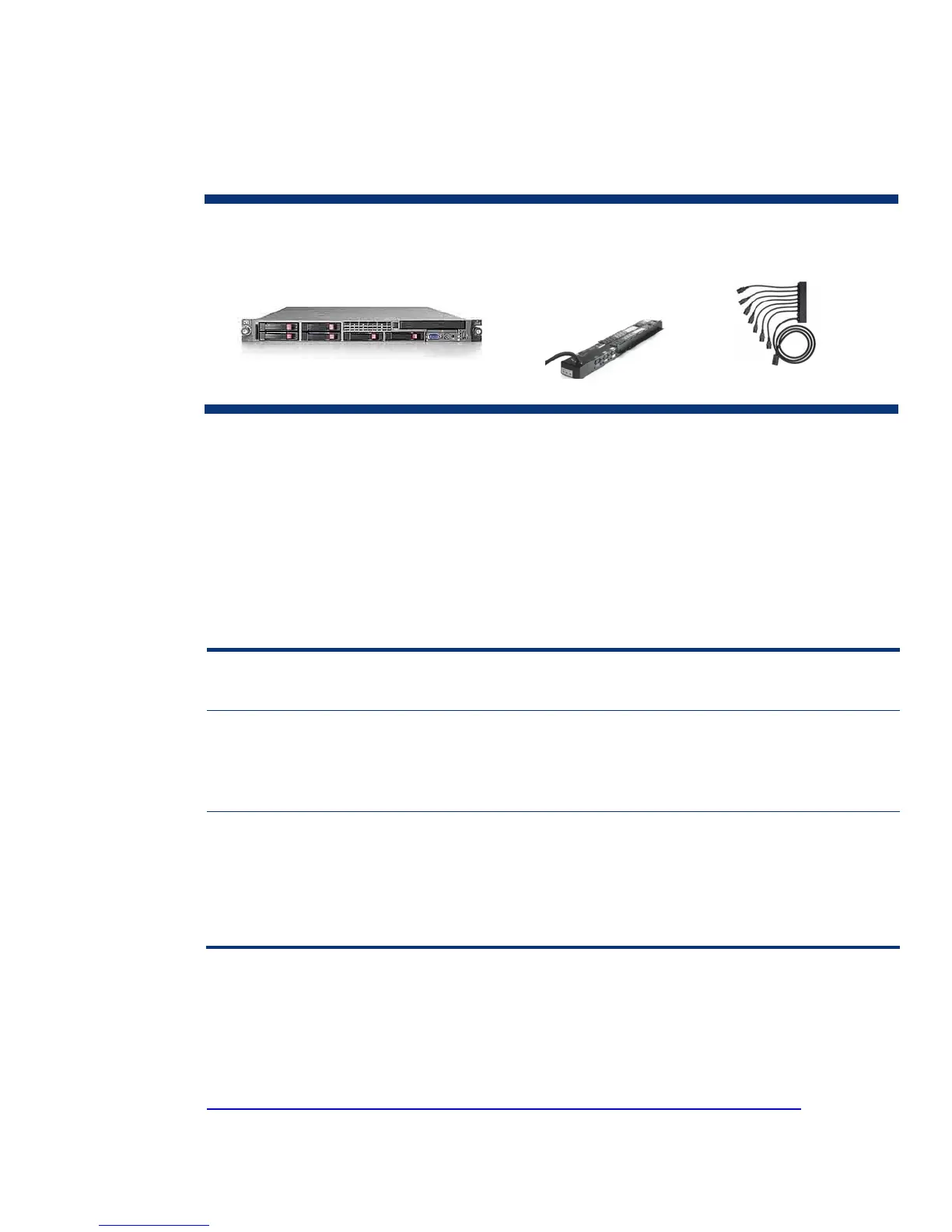

Figure 8. HP ProLiant DL360 G5 system and power distribution components
HP ProLiant DL360 G5 server
Monitored PDU
Fixed cord
Extension Bar
Table 3 shows the difference in power requirements of the ProLiant DL360 G5 server when it is used
in two different scenarios. In one scenario, the server is configured and utilized to about half its
potential. In the other scenario, the server is nearly at maximum configuration and estimated to run at
a relatively high (70 percent) state of use. Both configurations employ redundant power (two supplies
per system) and use high-line voltage. The maximum configuration operates off three-phase power.
Although a standard 42U rack can physically accommodate 42 ProLiant DL360 G5 servers, it is
advisable to leave space for server expansion, power distribution components such as PDUs and
UPSs, keyboard/video/mouse (KVM) equipment, and/or networking components.
Table 3. HP ProLiant DL360 G5 server power distribution configurations
No. of
servers
in rack
System configuration
(each server)
Total VA
required
Total
current
draw
No./type
of outlets
required
Recommended PDU
30
One 2.0-GHz processor,
2 GB memory, one PCI-E
card, two 36 GB hard
drives, system utilization
estimated at 40%
8.5 kVA 36 A 60/C13
1Ф 208VAC:
Monitored PDU AF506A (x2)
or monitored PDU AF505A
1Ф 220VAC:
Monitored PDU AF508A (x2)
30
Two 3.0-GHz
processors, 16 GB
memory, two PCI-E
cards, four 146-GB SAS
hard drives, system
utilization estimated at
70%
14.5 kVA 60 A 60/C13
3Ф 208VAC:
Monitored PDU AF916A
and
fixed cord extension bar
351655-B21 (x5)
3Ф 220VAC:
Monitored PDU AF509A (x2)
Products and part numbers discussed in this document are subject to change without notice. Refer to
the URL provided in the “For more information” section for the latest available products and part
numbers
Total VA and current requirements were determined using the HP Power Calculator Utility available at
the following URL:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
