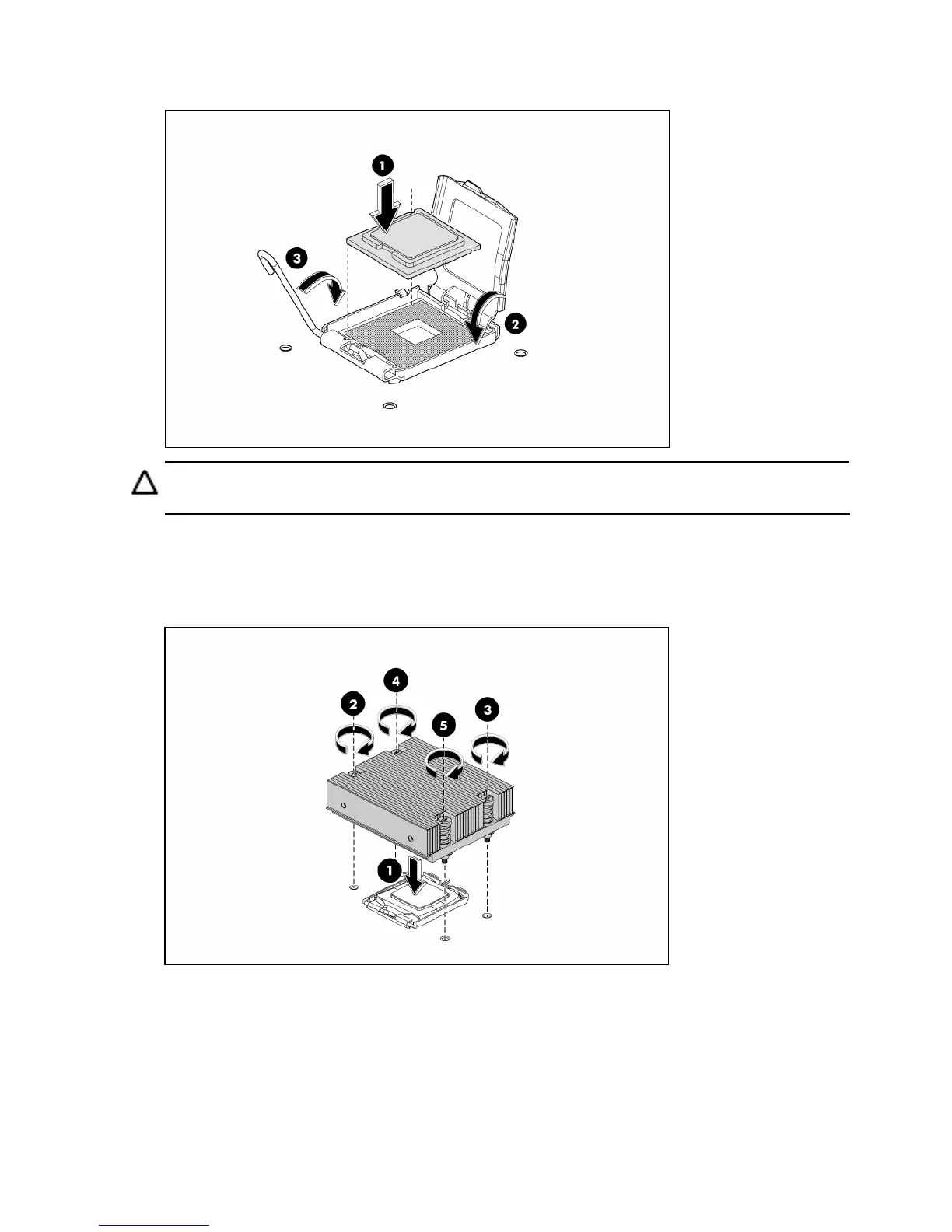

Figure 39 Installing the processor
CAUTION: To prevent overheating or a possible system crash, use only a heat sink model specified
for the HP ProLiant DL160 G5 server.
To install the heat sink:
1. Properly align the heat sink mounting pins to the system board mounting holes.
2. Tighten the mounting pins clockwise to secure the heat sink connection to the system board.
Figure 40 Installing the heat sink
To install the air baffle:
1. Gently place in the air baffle.
