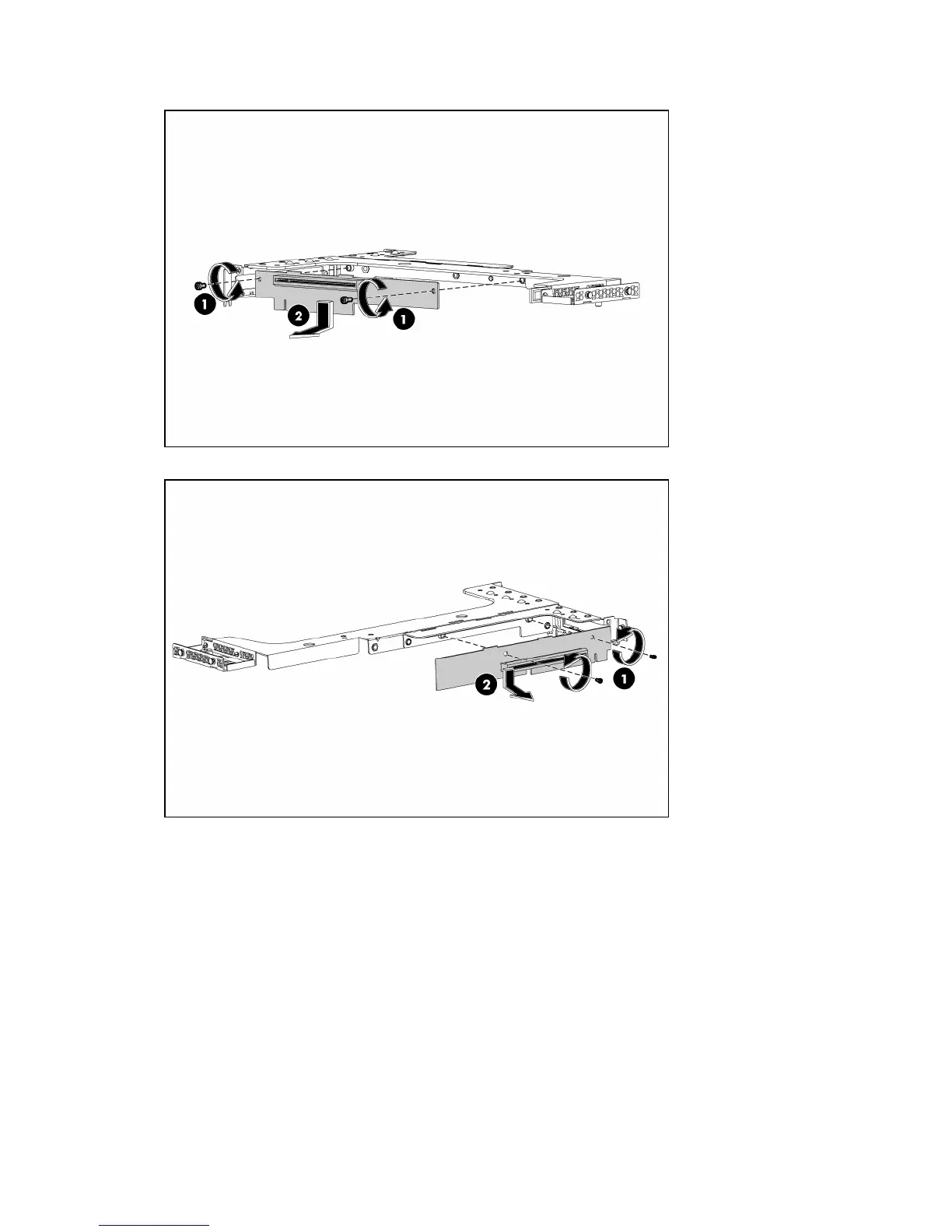

Figure 49 Removing the PCIe riser card (1)
Figure 50 Removing the PCIe riser card (2)
To install the PCIe Riser card:
1. Align the two riser card slots to the standoff on the PCI cage, and then push the card up.
2. Install and tighten the two screws that secure the riser card to the PCI cage.
