Removal and Replacement Procedures
Compaq ProLiant DL360 Server Maintenance and Service Guide 2-13
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
To replace the assembly, slide the assembly into the bay until it is fully seated.

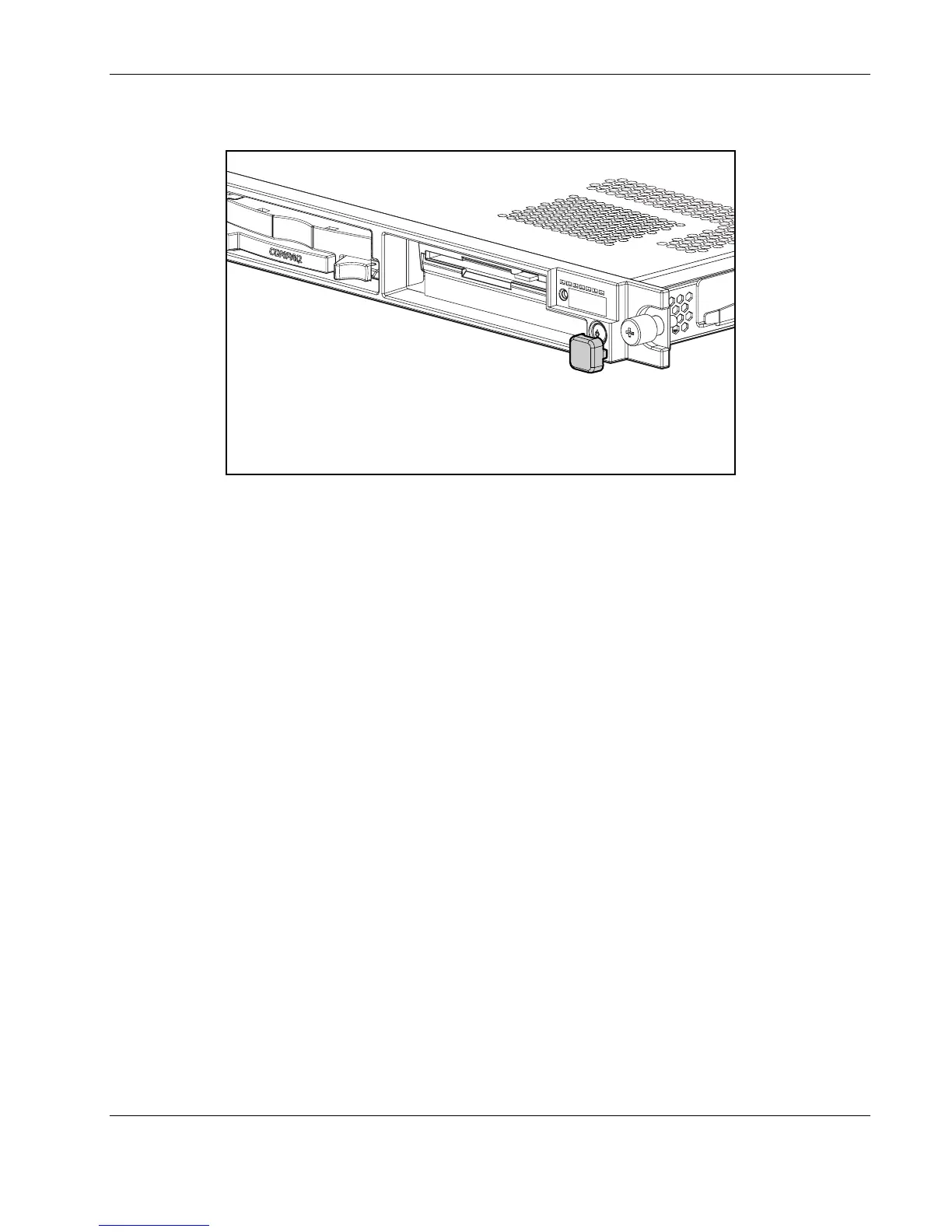

Figure 2-8: DVD-ROM/diskette drive assembly fully seated
If you intend to use the DVD-ROM drive/diskette ejection feature frequently, leave the
shipping/ejector key in the ejector port for easy access.
NOTE: The key prevents accidental engagement of the Power On/Standby switch.
